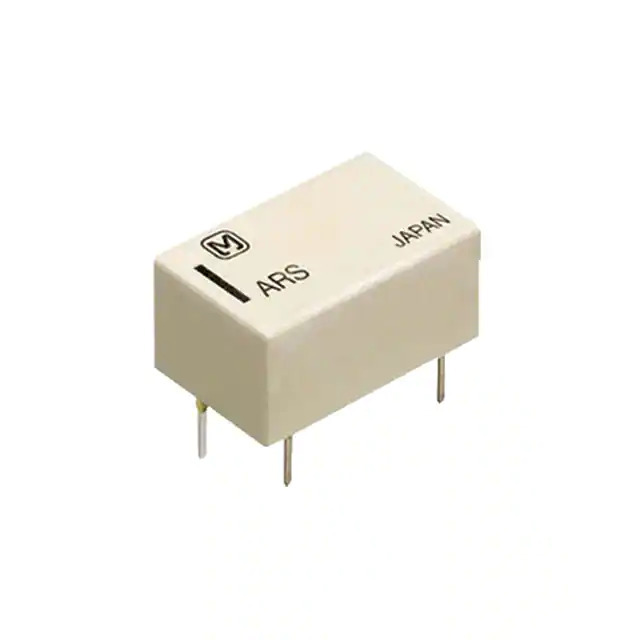

ARS1412 Panasonic
Same model may have multiple batches, images only for reference.

ARS1412

Part No ARS1412
Manufacturer Panasonic
Catalog High Frequency (RF) Relays
Description RELAY RF SPDT 500MA 12V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - High Frequency (RF) Relays
Mfr Panasonic Electric Works
Series ARS
Package Tube
Product Status Active
Coil Type Non Latching
Coil Current 16.7 mA
Coil Voltage 12VDC
Contact Form SPDT (1 Form C)
Contact Rating (Current) 500 mA
Switching Voltage 30VDC - Max
Must Operate Voltage 9 VDC
Must Release Voltage 1.2 VDC
Operate Time 10 ms
Release Time 6 ms
Features -
Mounting Type Through Hole
Termination Style PC Pin
Temperature Range - Operating -40°C ~ 70°C
Contact Material Gold Plating
Coil Power 200mW
Coil Resistance 720 Ohms
Base Product Number ARS14
MSL Level Not Applicable
ECCN EAR99
HTSUS 8536.41.0020
Win Source Part Number 1373502-ARS1412
Ultra Librarian 3D Model Ultra Librarian ARS1412 CAD Model

Description

The ARS1412 is a high-frequency relay from Panasonic Electric Works.

  • Contact Form: SPDT (1 Form C)
  • Contact Rating: 500 mA
  • Switching Voltage: Up to 30VDC
  • Coil Voltage: 12VDC
  • Coil Type: Non-Latching
  • Coil Current: 16.7 mA
  • Mounting Type: Through-Hole
  • Operate Time: 10 ms
  • Release Time: 6 ms
  • Contact Plating: Gold Plated
  • Temperature Range: -40°C to 70°C
  • Status: Active
  • Series: ARS
  • Package: Tube
