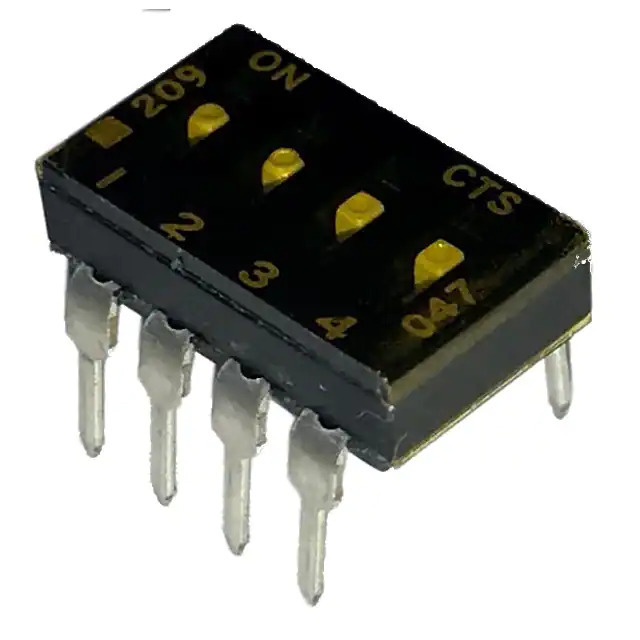

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Switches - DIP Switches
Mfr CTS Electrocomponents
Series 209
Package Tube
Product Status Active
Circuit SPST
Number of Positions 4
Current Rating (Amps) 100mA
Voltage Rating 20VDC
Actuator Type Slide (Standard)
Actuator Level Flush, Recessed
Contact Material Beryllium Copper
Contact Finish Gold
Height Above Board 0.180" (4.57mm)
Mounting Type Through Hole
Termination Style PC Pin
Pitch 0.100" (2.54mm), Full
Washable Yes
Features Epoxy Sealed Terminals, Tape Seal
Temperature Range - Operating -40°C ~ 85°C
Body Material -
Length 0.458" (11.63mm)
Mechanical Life -
Electrical Life 2,000 Cycles
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9065
Win Source Part Number 1376359-209-4LPST
Ultra Librarian 3D Model Ultra Librarian 209-4LPST CAD Model

Description

The 209-4LPST is a DIP switch from CTS Electrocomponents.

  • Manufacturer: CTS Electrocomponents
  • Current Rating: 100mA
  • Voltage Rating: 20VDC
  • Positions: 4
  • Contact Plating: Gold
  • Package: Tube
  • Temperature Range: -40°C to 85°C
  • Application: Circuit Configuration and Control
  • Pitch: 0.100" (2.54mm)
  • Actuator Type: Slide
  • Mechanical Life: 2,000 Cycles
  • Washable: Yes
  • Mounting Type: Through Hole
