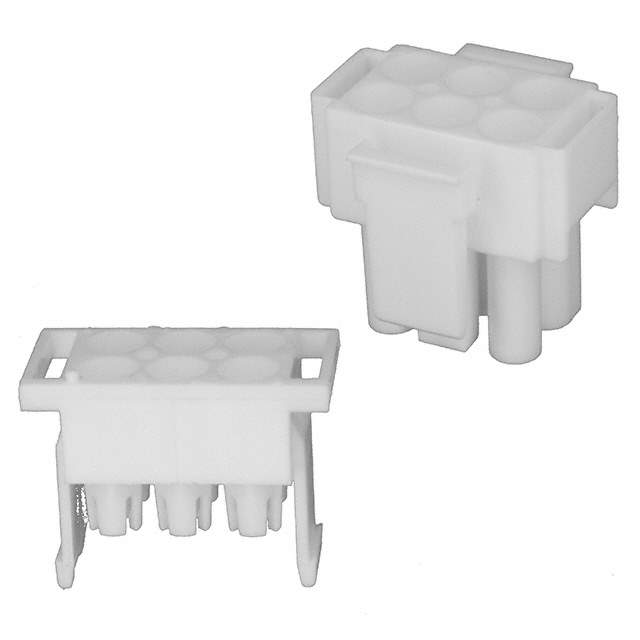

770020-1 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Housings
Mfr TE Connectivity AMP Connectors
Series Universal MATE-N-LOK II
Package Bulk
Connector Type Plug
Contact Type Male or Female
Number of Positions 6
Number of Rows 3
Row Spacing 0.250" (6.35mm)
Mounting Type Free Hanging (In-Line)
Contact Termination Crimp
Fastening Type Latch Lock
Color White
Note Contacts Not Included
Base Product Number 770020
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8538.90.6000
Other Names -405257429-SI-ND,-770020-1-SI,2266-770020-1,A14243,-405257429-CSI,-405257429-CSI-ND,-770020-1-CSI,-405257429-LSI,-405257429-SI,7700201
Standard Package 1
Win Source Part Number 1030953-770020-1
Ultra Librarian 3D Model Ultra Librarian 770020-1 CAD Model

Description

The Universal MATE-N-LOK II series connector is a high-quality rectangular connector housing designed for use in a wide range of electronic applications.

  • Positions: 6
  • Connector Type: Plug
  • Contact Type: Male or Female
  • Contact Termination: Crimp
  • Fastening: Latch-locked
  • Color: White
  • Mounting: Free-hanging (in-line)
  • Contacts Included: No
