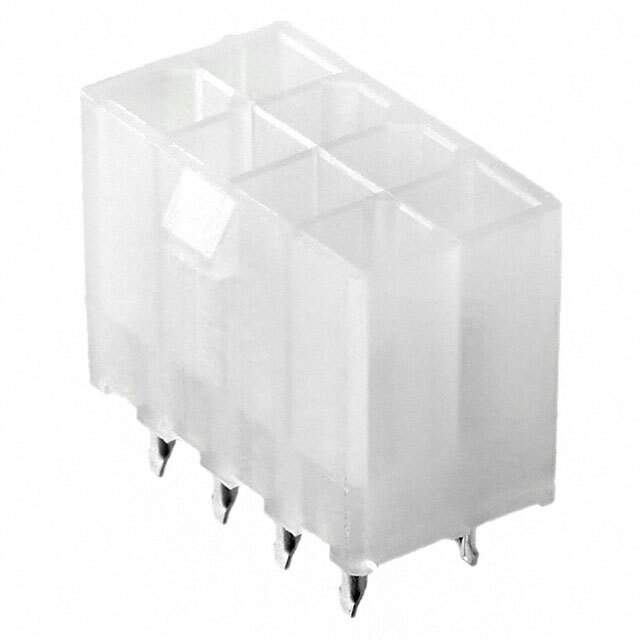

1586037-8

Name: 1586037-8
Brand: TE Connectivity
SKU: 1195267
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	1586037-8
Manufacturer	TE Connectivity
Catalog	Barrel - Power Connectors
Description	CONN HEADER VERT 8POS 4.2MM / Connector Header Through Hole 8 position 0.165" (4.20mm)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr	TE Connectivity AMP Connectors
Series	VAL-U-LOK
Package	Bulk
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.165" (4.20mm)
Number of Positions	8
Number of Rows	2
Row Spacing - Mating	0.165" (4.20mm)
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Locking Ramp
Contact Length - Post	0.138" (3.50mm)
Insulation Height	0.504" (12.80mm)
Contact Shape	Square
Contact Finish - Mating	Tin
Contact Finish Thickness - Mating	80.0µin (2.03µm)
Contact Finish - Post	Tin
Contact Material	Brass Alloy
Insulation Material	Polyamide (PA), Nylon
Temperature Range - Operating	-40°C ~ 105°C
Material Flammability Rating	UL94 V-2
Insulation Color	Natural
Current Rating (Amps)	9A
Voltage Rating	600VAC
Contact Finish Thickness - Post	80.0µin (2.03µm)
Applications	General Purpose, Industrial, Lighting
Base Product Number	1586037
MSL Level	1 (Unlimited)
REACH Status	Vendor Undefined
ECCN	EAR99
HTSUS	8536.69.4040
Other Names	15860378,-1586037-8-SI,-1586037-8-LSI,A30605
Standard Package	315
Win Source Part Number	1195267-1586037-8
Ultra Librarian 3D Model	Ultra Librarian 1586037-8 CAD Model

Description

The VAL-U-LOK header connector is a male pin connector that comes with 8 positions and 2 rows.

Positions: 8
Rows: 2
Application: General Purpose, Industrial, Lighting
Contact Material: Brass Alloy
Voltage Rating: 600VAC
Current Rating: 9A
Shrouded: Yes, 4 Walls
Locking Ramp: Yes
Mounting Type: Through-Hole
Pitch: 0.165 inches
Contact Finish: Tin
Insulation Material: Polyamide (PA), Nylon
Flammability Rating: UL94 V-2
Temperature Range: -40°C to 105°C
Packaging: Bulk
Standard Package: 315
