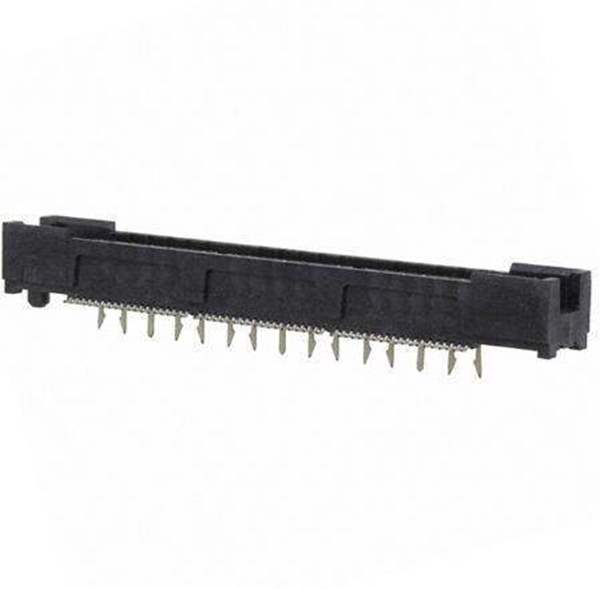

767054-3

Part No 767054-3
Manufacturer TE Connectivity
Catalog Rectangular - Board to Board Connectors
Description CONN RCPT 114P SMD PALLAD-NICKEL
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number Cross
Manufacturer TE Connectivity AMP Connectors
Category Connectors, Interconnects Rectangular Connectors Arrays, Edge Type, Mezzanine (Board to Board)
Package Tube
Product Status Obsolete
Connector Type Receptacle, Center Strip Contacts
Pitch 0.025" (0.64mm)
Mounting Type Surface Mount
Features Board Guide, Ground Bus (Plane)
Contact Finish Palladium-Nickel
Win Source Part Number WS1210864-767054-3
Ultra Librarian 3D Model Ultra Librarian 767054-3 CAD Model

Description

114 Position Connector Receptacle, Center Strip Contacts Surface Mount Palladium-Nickel
