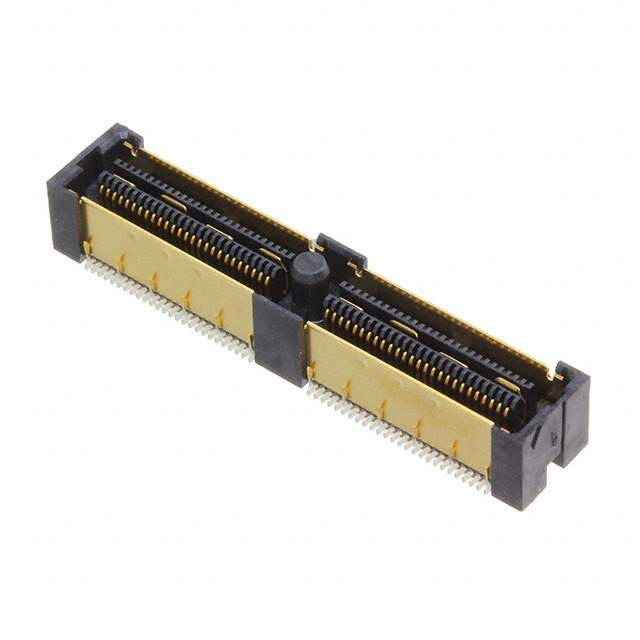

QFSS-052-04.25-H-D-A Real Image
Same model may have multiple batches, images only for reference.

QFSS-052-04.25-H-D-A

Part No QFSS-052-04.25-H-D-A
Manufacturer Samtec Inc.
Catalog Rectangular - Board to Board Connectors
Description CONN RCPT .635MM 104POS DUAL SMD
Datasheet
QFSS-052-04.25-H-D-A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Samtec Inc.
Packaging Tray
Status Active
Connector Type Receptacle, Center Strip Contacts
Number of Positions 104
Pitch 0.025" (0.64mm)
Number of Rows 2
Mounting SMD (SMT)
Features Board Guide, Ground Bus (Plane), Shielded
Contact Finish Gold
Contact Finish Thickness 30μin (0.76μm)
Mated Stacking Heights 11mm
Height Above Board 0.278" (7.06mm)
Win Source Part Number 098712-QFSS-052-04.25-H-D-A
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian QFSS-052-04.25-H-D-A CAD Model

Description

The Samtec Inc. 098712-QFSS-052-04.25-H-D-A is a connector with 104 positions and a pitch of 0.025" (0.64mm).

  • Positions: 104
  • Pitch: 0.025" (0.64mm)
  • Features: board guide, ground bus (plane), and shielding
  • Connector Type: receptacle with center strip contacts
  • Rows: two
  • Contact Finish: gold with a thickness of 30μin (0.76μm)
  • Mated Stacking Height: 11mm
  • Height Above Board: 0.278" (7.06mm)
  • Designed For: use in a variety of applications
  • Status: active
  • Popularity: medium
