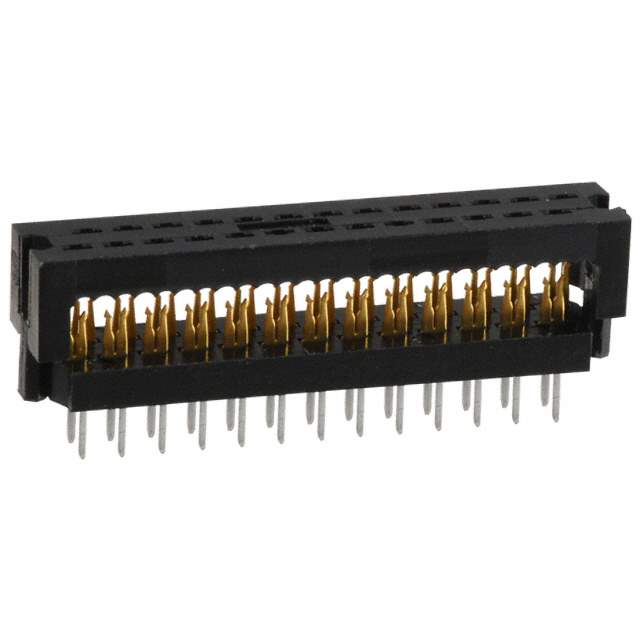

746610-1 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Manufacturer TE Connectivity AMP Connectors
Packaging Bulk
Connector Type Ribbon Cable, DIP Header
Number of Positions 10
Cable Pitch 0.050" (1.27mm)
Board-Side Pitch 0.100" (2.54mm)
Number of Rows 2
Row Spacing 0.100" (2.54mm)
Mounting Style Through Hole
Cable Termination IDC
Wire Gauge 26-28 AWG, Stranded; 26-30 AWG Solid
Features Feed Through
Contact Finish Tin-Lead
Contact Finish Thickness 100.0μin (2.54μm)
Color Black
Number of Positions Loaded All
Manufacturer Pack Quantity 50
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 809772-746610-1
Ultra Librarian 3D Model Ultra Librarian 746610-1 CAD Model

Description

The TE Connectivity AMP Connectors 809772-746610-1 is a 10-position DIP header connector that is designed for ribbon cable applications. It features a through-hole mounting style and a feed-through design that allows the ribbon cable to pass through the connector.

  • Color: Black
  • Number of Positions: 10 on each of 2 rows
  • Contact Finish: Tin-Lead
  • Contact Finish Thickness: 100.0μin (2.54μm)
  • Wire Compatibility: 26-28 AWG stranded, 26-30 AWG solid
  • Cable Termination: IDC
  • Cable Pitch: 0.050" (1.27mm)
  • Board-Side Pitch: 0.100" (2.54mm)
  • Packaging: Bulk
  • Quantity: 50
