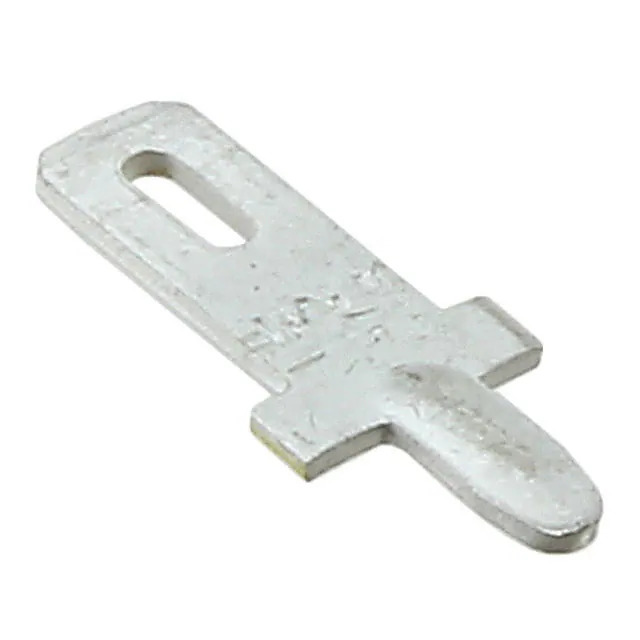

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Terminals - Quick Connects, Quick Disconnect Connectors
Mfr TE Connectivity AMP Connectors
Series Faston
Package Bulk
Product Status Active
Terminal Type Standard
Gender Male
Tab Width 0.110" (2.79mm)
Tab Thickness 0.020" (0.51mm)
Tab Length -
Length - Overall 0.488" (12.40mm)
Termination Solder
Wire Gauge -
Insulation Non-Insulated
Mounting Type Through Hole
Features -
Color -
Contact Material Brass
Contact Finish Tin
Insulation Diameter -
Base Product Number 735187
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Win Source Part Number 1356741-735187-2
Ultra Librarian 3D Model Ultra Librarian 735187-2 CAD Model

Description

The TE Connectivity AMP Connectors 735187 is a male quick disconnect connector from the Faston series.

  • Manufacturer: TE Connectivity AMP Connectors
  • Series: Faston
  • Mounting Type: Through hole
  • Contact Finish: Tin
  • Insulation: Non-insulated
  • Length Overall: 0.488" (12.40mm)
  • Material: Brass
  • Terminal Type: Standard
  • Tab Width: 0.110" (2.79mm)
  • Tab Thickness: 0.020" (0.51mm)
