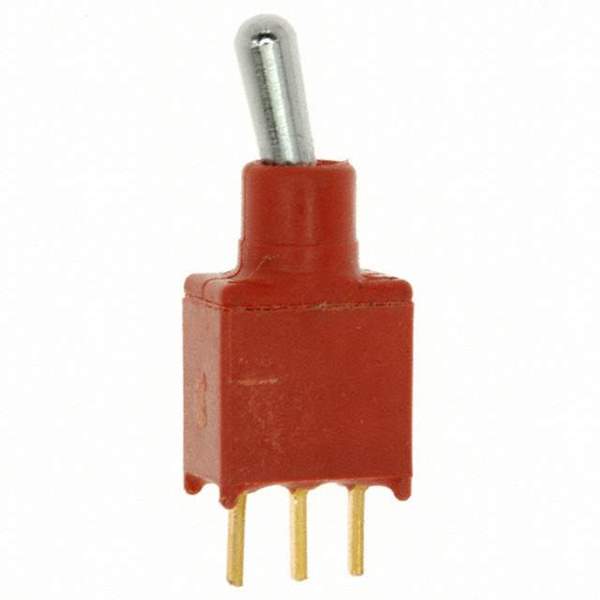

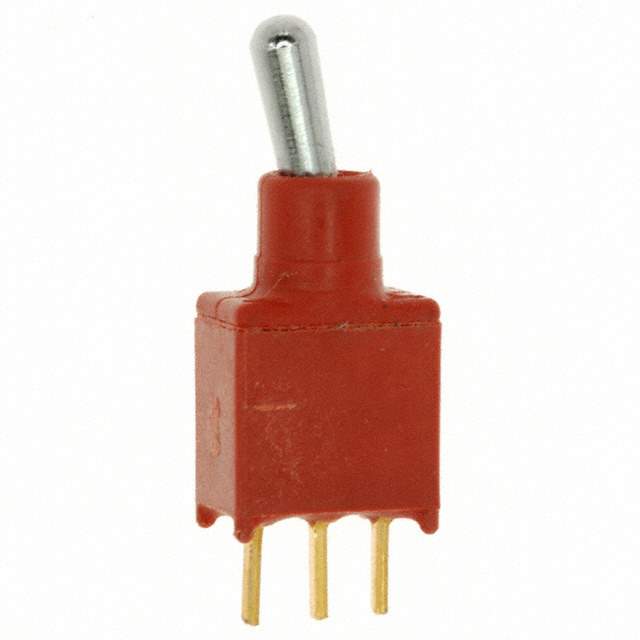

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Switches>Toggle Switches
Mfr C&K
Series ET
Package Bulk
Mounting Type Through Hole
Circuit SPDT
Switch Function On-On
Current Rating (Amps) 0.4VA (AC/DC)
Voltage Rating - AC 20 V
Voltage Rating - DC 20 V
Actuator Type Standard Round
Actuator Length 6.10mm
Illumination Non-Illuminated
Termination Style PC Pin
Bushing Thread Unthreaded
Ingress Protection IP57 - Dust Protected, Waterproof
Features Epoxy Sealed Terminals
Temperature Range - Operating -30°C ~ 85°C
Actuator Material Brass, Chrome Plated
Electrical Life 60,000 Cycles
Base Product Number ET01
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.50.9065
Other Names CKN1530,2266-ET01MD1CBE,*ET01MD1CBE,ET01MD1CBE-ND
Standard Package 1
Win Source Part Number 1020910-ET01MD1CBE
Ultra Librarian 3D Model Ultra Librarian ET01MD1CBE CAD Model

Description

The C&K ET01MD1CBE is a switch component used in various electronic devices.

  • Manufacturer: C&K
  • Win Source Part Number: 1020910
  • Switch Type: Switch Component
  • Circuit Type: SPDT
  • Actuator Type: Standard Round
  • Electrical Life: 60,000 cycles
  • Illumination: Non-Illuminated
  • Sealing: Epoxy Sealed
  • Protection: Dust Protected and Waterproof
  • Ingress Protection: IP57
  • Operating Temperature Range: -30°C to 85°C
