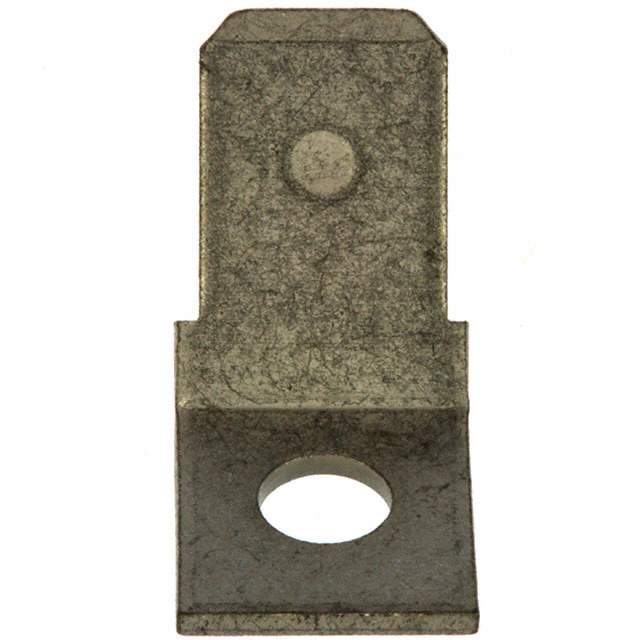

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Terminals - Quick Connects, Quick Disconnect Connectors
Mfr TE Connectivity AMP Connectors
Series Faston
Package Bulk
Terminal Type Angled - 45°
Gender Male
Tab Width 0.250" (6.35mm)
Tab Thickness 0.032" (0.81mm)
Termination Screw, Rivet, Stud
Insulation Non-Insulated
Mounting Type Board, Chassis
Contact Material Brass
Contact Finish Tin
Base Product Number 42822
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Other Names A27858,42822-2-ND,-42822-2-SI,428222
Standard Package 1,000
Win Source Part Number 1198915-42822-2
Ultra Librarian 3D Model Ultra Librarian 42822-2 CAD Model

Description

This electronic component is a male terminal type angled @ 45 degrees.

  • Insulation: Non-insulated
  • Mounting: Boards or chassis
  • Termination: Screws, rivets, or studs
  • Contact Finish: Tin
  • Contact Material: Brass
  • Packaging: Bulk
  • Tab Width: 0.250 inches
  • Tab Thickness: 0.032 inches
  • Series: Faston
  • Standard Package: 1,000
  • Cross-Reference: 42822-2
  • ECCN: EAR99
  • MSL Level: 1.90.4000
