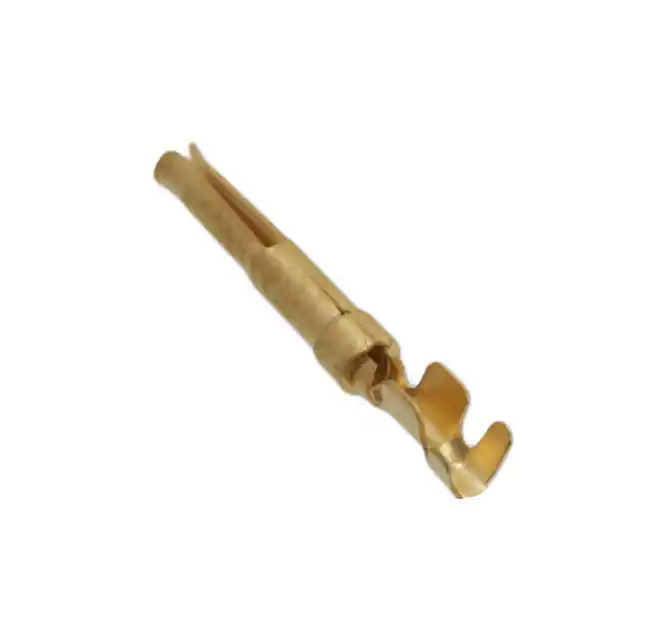

66504-9 TE Connectivity
Same model may have multiple batches, images only for reference.

66504-9

Part No 66504-9
Manufacturer TE Connectivity
Catalog Contacts - Multi Purpose
Description CONN SOCKET 20-24AWG GOLD CRIMP / Socket Contact Gold Crimp 20-24 AWG Stamped
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Contacts - Multi Purpose
Mfr TE Connectivity AMP Connectors
Series AMPLIMITE HDP-20
Package Bulk
Product Status Active
Type Stamped
Pin or Socket Socket
Contact Termination Crimp
Wire Gauge 20-24 AWG
Contact Material Phosphor Bronze
Contact Finish Gold
Contact Finish Thickness 30.0µin (0.76µm)
Base Product Number 66504
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Win Source Part Number 1363397-66504-9
Ultra Librarian 3D Model Ultra Librarian 66504-9 CAD Model

Description

The TE Connectivity AMP Connectors AMPLIMITE HDP-20 series multi-purpose contact is a versatile and reliable contact for various applications.

  • Termination: Crimp
  • Wire Gauge: 20 to 24 AWG
  • Contact Finish: Gold
  • Contact Finish Thickness: 30.0μin
  • Contact Material: Phosphor Bronze
  • Series: AMPLIMITE HDP-20
  • Status: Active
  • Packaging: Bulk
