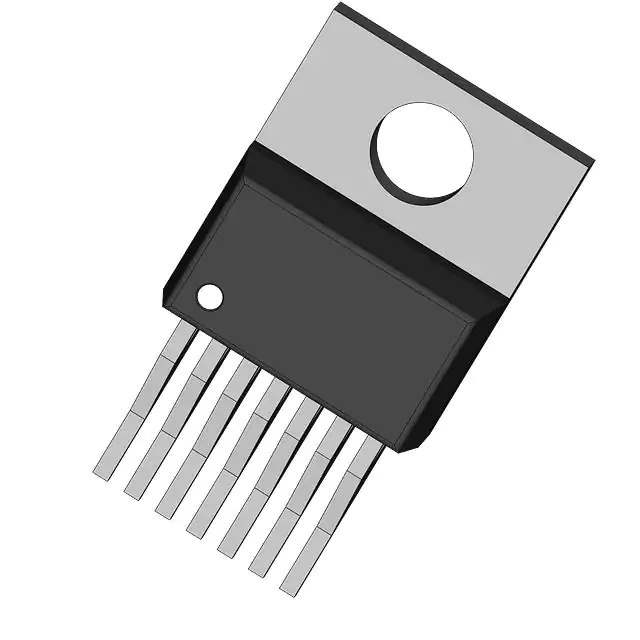

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Power Management (PMIC) - Gate Drivers
Mfr Intersil
Series SynchroFET™
Package Bulk
Product Status Active
Programmable Not Verified
Driven Configuration Half-Bridge
Channel Type Synchronous
Number of Drivers 2
Gate Type N-Channel MOSFET
Voltage - Supply 9.6V ~ 14.4V
Current - Peak Output (Source, Sink) 17A, 17A
Input Type Non-Inverting
Rise / Fall Time (Typ) 20ns, 20ns
Temperature Range - Operating -40°C ~ 85°C
Mounting Type Surface Mount
Package / Case TO-263-8, D²Pak (7 Leads + Tab), TO-263CA
Supplier Device Package 7-Gullwing SIP
Base Product Number HIP5011
Standard Package 70 pcs
MSL Level 3 (168 Hours)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 598057-HIP5011IS
Ultra Librarian 3D Model Ultra Librarian HIP5011IS CAD Model

Description

The 598057-HIP5011IS is a gate driver integrated circuit from the SynchroFET series, designed for power management applications.

  • Configuration: Half-Bridge Driven
  • Gate Driver: 2 N-Channel MOSFETs
  • Supply Voltage Range: 9.6V to 14.4V
  • Peak Output Current: 17A
  • Rise/Fall Time: 20ns
  • Mounting Type: Surface Mount
  • Package: TO-263-8, D²Pak
  • Operating Temperature Range: -40°C to 85°C
  • Lifecycle Status: Active
