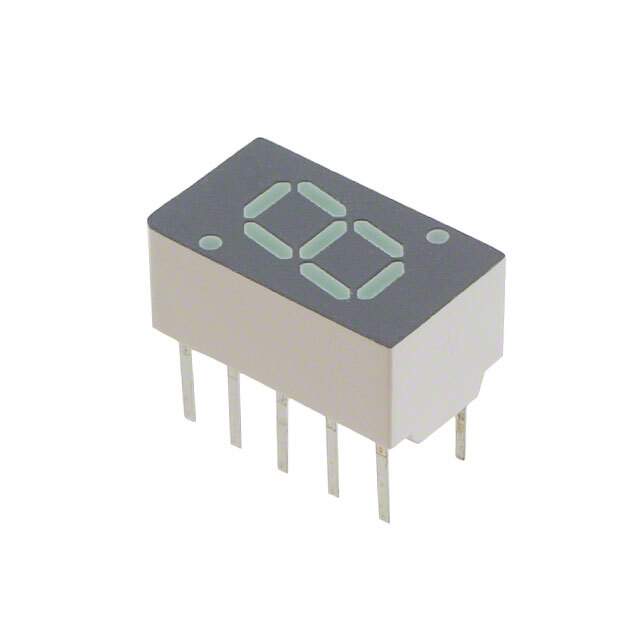

HDSP-7802 Real Image
Same model may have multiple batches, images only for reference.

HDSP-7802

Part No HDSP-7802
Manufacturer Broadcom Limited
Catalog Display Modules - LED Character and Numeric
Description 7.6 mm (0.3 inch) Micro Bright Seven Segment Displays | DISPLAY 7SEG GRN COLON CA 0.3"
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Optoelectronics
Manufacturer Broadcom Limited
Packaging Bulk
Status Obsolete
Number of Characters 1
Parts Dimension 0.500" H x 0.300" W x 0.240" D (12.70mm x 7.62mm x 6.09mm)
Digit/Alpha Size 0.30" (7.62mm)
Display Type 7-Segment
Common Pin Common Anode
Color Green
Voltage - Forward (Vf) 2.1V
Current - Test 10mA
Millicandela Rating 6.8mcd
Wavelength - Peak 566nm
Power Dissipation (Maximum) 105mW
Manufacturer Package 10-DIP (0.200", 5.08mm)
Manufacturer Pack Quantity 200
MSL Level 1 (Unlimited)
Win Source Part Number 1179744-HDSP-7802
Manufacturer Homepage www.home.agilent.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian HDSP-7802 CAD Model

Description

The Broadcom Limited 1179744-HDSP-7802 is a green optoelectronic with a millicandela rating of 6.8mcd and a current-test of 10mA.

  • Display Type: 7-Segment
  • Number of Characters: 1
  • Digit/Alpha Size: 0.30" (7.62mm)
  • Status: Obsolete
  • Popularity: Medium
  • Supply and Demand: Limited
  • Manufacturer Package: 10-DIP (0.200", 5.08mm)
  • Parts Dimension: 0.500" H x 0.300" W x 0.240" D (12.70mm x 7.62mm x 6.09mm)
