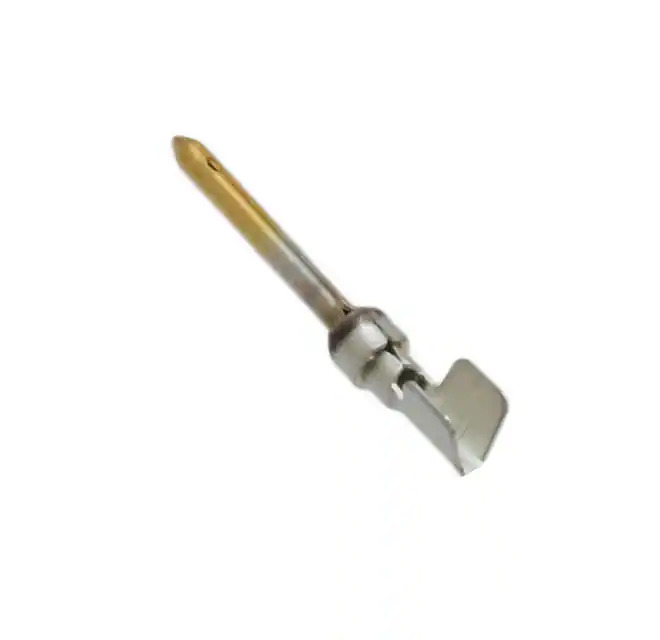

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Contacts - Multi Purpose
Mfr TE Connectivity AMP Connectors
Series AMPLIMITE HDP-20
Package Tape & Reel (TR)
Product Status Active
Type Stamped
Pin or Socket Pin
Contact Termination Crimp
Wire Gauge 18-22 AWG
Contact Material Brass
Contact Finish Gold
Contact Finish Thickness 30.0µin (0.76µm)
Base Product Number 745229
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Win Source Part Number 1363386-745229-2
Ultra Librarian 3D Model Ultra Librarian 745229-2 CAD Model

Description

The 1363386-745229-2 is a multi-purpose contact from TE Connectivity AMP Connectors.

  • Series: AMPLIMITE HDP-20
  • Contact Gender: Pin
  • Contact Type: Stamped
  • Termination Type: Crimp
  • Wire Gauge: 18-22 AWG
  • Contact Finish: Gold
  • Contact Finish Thickness: 30.0μin (0.76μm)
  • Application: Automotive, Industrial, Telecommunications
  • Product Status: Active
  • Base Product Number: 745229
  • MSL Level: 1
  • ECCN: EAR99
  • HTSUS Code: 8536.90.4000
  • Contact Material: Brass
