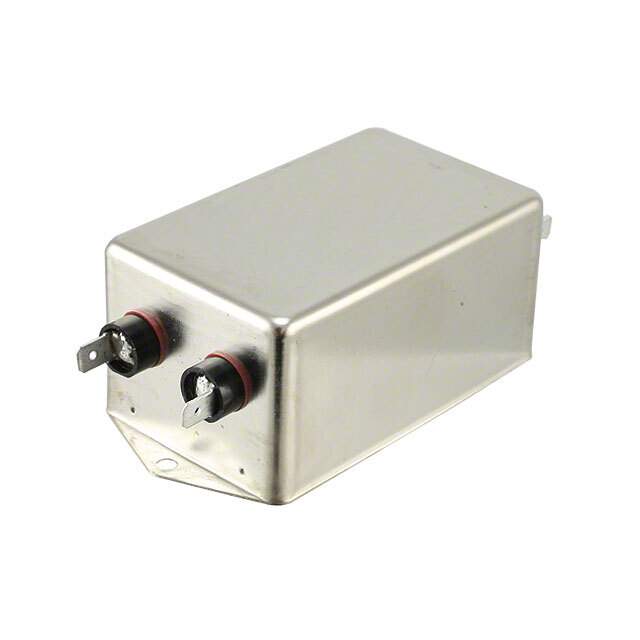

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Filters>Power Line Filter Modules
Mfr TE Connectivity Corcom Filters
Series SK
Package Bulk
Filter Type Single Phase
Configuration Single Stage
Voltage - Rated AC 250V
Current 10 A
Frequency - Operating 50/60Hz
Applications General Purpose
Approval Agency CSA, UR, VDE
Temperature Range - Operating -10°C ~ 40°C
Mounting Type Chassis Mount
Termination Style Quick Connect
Inductance 7.13mH
Base Product Number 6609035
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 1316222-6609035-9
Ultra Librarian 3D Model Ultra Librarian 6609035-9 CAD Model

Description

The 6609035-9 is a single phase power line filter module designed for general purpose applications.

  • Inductance: 7.13mH
  • Configuration: Single stage
  • Filter Type: Single phase
  • Current: 10 A
  • Voltage Rated AC: 250V
  • Frequency Operating: 50/60Hz
  • Termination Style: Quick connect
  • Temperature Range: -10°C ~ 40°C
  • Package: Bulk
  • Supplier: TE Connectivity Corcom Filters
  • Application: Filters - power line filter modules
