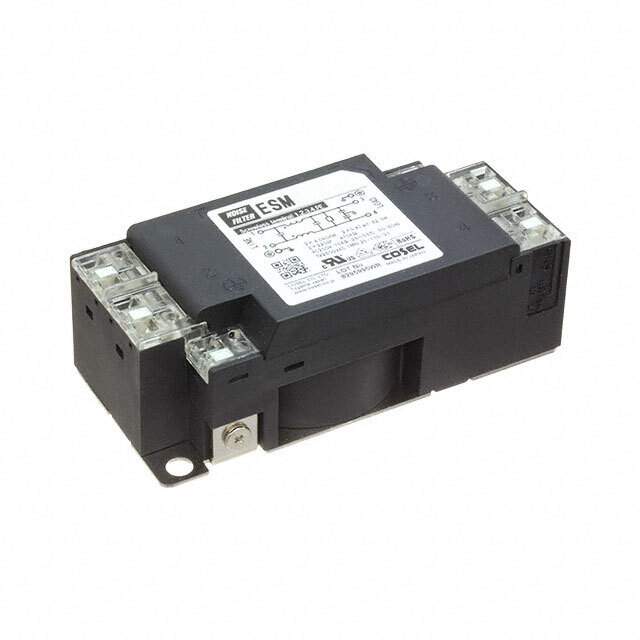

ESM-16-000 Real Image
Same model may have multiple batches, images only for reference.

ESM-16-000

Part No ESM-16-000
Manufacturer Cosel USA, Inc.
Catalog Power Line Filter Modules
Description LINE FILTER 250VDC/VAC 16A CHAS  /  Single Phase EMC/EMI Line Filter 16 A 250VAC Single Stage Terminal Block
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Power Line Filter Modules
Mfr Cosel USA, Inc.
Series ESM
Package Box
Filter Type Single Phase
Configuration Single Stage
Voltage - Rated DC 250V
Voltage - Rated AC 250V
Voltage - Rated AC (Phase to Ground/Neutral) 250 V
Current 16 A
Applications General Purpose
Approval Agency cURus, VDE
Temperature Range - Operating -40°C ~ 85°C
Mounting Type Chassis Mount
Termination Style Terminal Block
Base Product Number ESM-16
MSL Level Not Applicable
ECCN EAR99
HTSUS 8548.00.0000
Other Names 1776-2125,ESM-16-000-ND
Standard Package 1
Win Source Part Number 1159280-ESM-16-000
Ultra Librarian 3D Model Ultra Librarian ESM-16-000 CAD Model

Description

The ESM-16-000 power line filter module by Cosel USA, Inc. is a single-phase filter with a current rating of 16A and a voltage rating of 250V.

  • Current Rating: 16A
  • Voltage Rating: 250V
  • Package: Box
  • Termination: Terminal Block
  • Application: General Purpose
  • Mounting: Chassis
  • Configuration: Single-Stage
  • Operating Temperature: -40°C to 85°C
  • Approvals: cURus, VDE
  • Standard Package: One Unit
