Same model may have multiple batches, images only for reference.

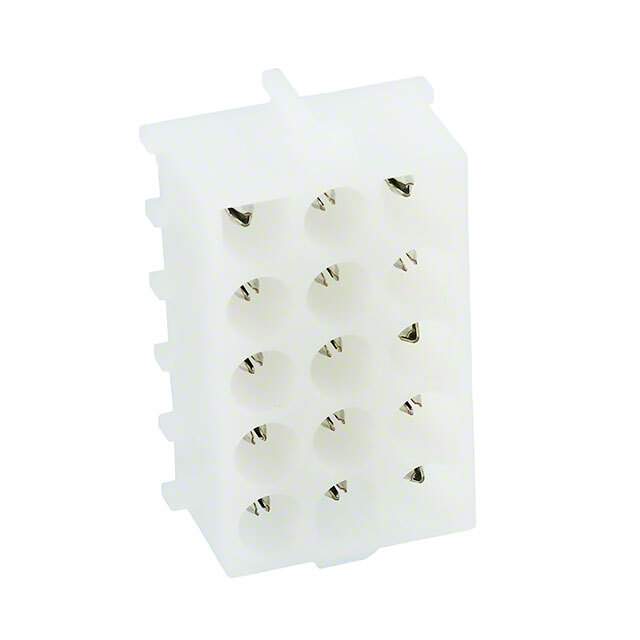

641975-1 Real Image
Same model may have multiple batches, images only for reference.

641975-1

Part No 641975-1
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN HEADER VERT 15POS 6.35MM / Connector Header Through Hole 15 position 0.250" (6.35mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Manufacturer TE Connectivity AMP Connectors
Packaging Tray
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.250" (6.35mm)
Number of Positions 15
Number of Rows 3
Row Spacing - Mating 0.250" (6.35mm)
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Through Hole
Termination Solder
Fastening Type Locking Ramp
Contact Length - Post 0.155" (3.94mm)
Insulation Height 0.550" (13.97mm)
Contact Shape Circular
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 30.0µin (0.76µm)
Contact Finish - Post Tin
Contact Material Phosphor Bronze
Insulation Material Polyamide (PA), Nylon
Features Board Guide
Temperature Range - Operating -40°C ~ 105°C
Material Flammability Rating UL94 V-2
Insulation Color Natural
Current Rating (Amps) 12A
Voltage Rating 600VAC
Applications General Purpose
Base Product Number 641975
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number 6419751,641975-1-ND,A25298,-641975-1-SI
Standard Package 36
Win Source Part Number 1334286-641975-1
Ultra Librarian 3D Model Ultra Librarian 641975-1 CAD Model

Description

The TE Connectivity AMP Connectors Header with 15 positions is suitable for general purpose applications. It is designed with a locking ramp for secure fastening and a board guide feature for easy installation.

  • Applications: General Purpose
  • Fastening: Locking Ramp
  • Feature: Board Guide
  • Connector Type: Header
  • Contact Type: Male Pin
  • Positions Loaded: All
  • Rows: Three
  • Termination: Solder
  • Contact Material: Phosphor Bronze
  • Contact Finish (Mating): Gold
  • Contact Finish (Post): Tin
  • Insulation Material: Polyamide (PA) / Nylon
  • Insulation Color: Natural
  • Shrouded: Four Walls
  • Row Spacing: 0.250 inches
  • Contact Length (Post): 0.155 inches
  • Insulation Height: 0.550 inches
  • Contact Shape: Circular
  • Temperature Range: -40°C to 105°C
  • RoHS Compliant: Yes
  • Current Rating: 12A
