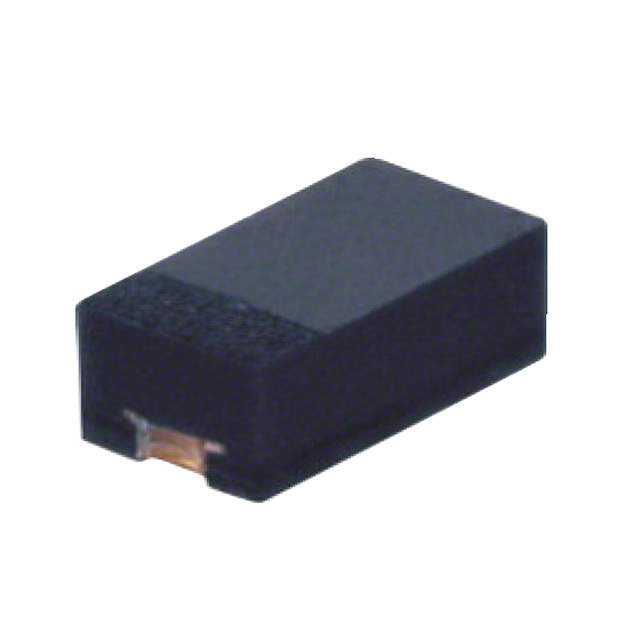

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Estimated Pruduction Lead Time 7 Weeks
Features Diode Schottky 20 V 500mA Surface Mount 0603/SOD-523F
Manufacturer Comchip Technology
Package Reel - TR
Speed Fast Recovery =< 500ns, > 200mA (Io)
Mounting Surface Mount
Package 2-SMD, No Lead
Case / Package 0603/SOD-523F
Family Name CDBU0530
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0070
Other Part Number CDBU0530-HF-ND, 641-1988-2, 641-1988-1, 641-1988-6
Quantity per package 4000
Popularity High
Supply and Demand Status Balance
Win Source Part Number 915186-CDBU0530-HF
Ultra Librarian 3D Model Ultra Librarian CDBU0530-HF CAD Model

Description

The CDBU0530-HF is a diode Schottky manufactured by Comchip Technology.

  • Feature: Low Forward Voltage Drop, Fast Switching
  • Supply and Demand Status: Balanced
  • Packaging: Reel
  • Quantity per Reel: 4000
  • Manufacturer: Comchip Technology
