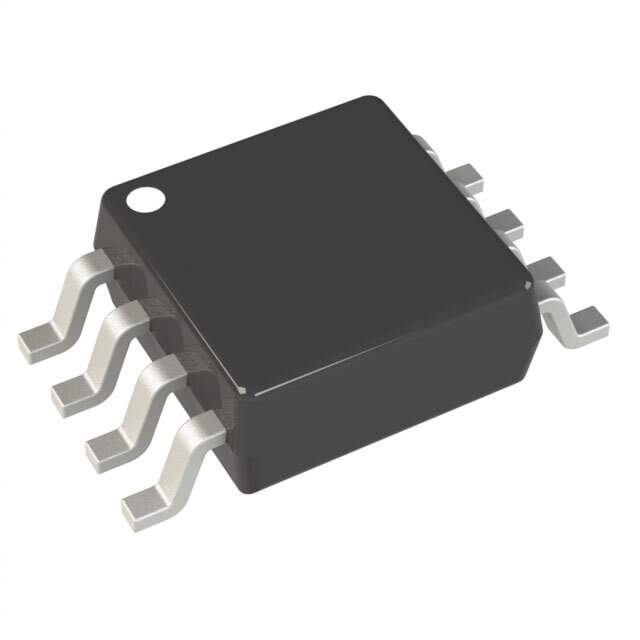

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Integrated Circuits (ICs)>Memory
Mfr Macronix
Series MXSMIO™
Package Tube
Memory Type Non-Volatile
Memory Format FLASH
Technology FLASH - NOR
Memory Size 64Mb (8M x 8)
Memory Interface SPI - Quad I/O, QPI
Clock Frequency 133 MHz
Write Cycle Time - Word, Page 40µs, 3ms
Voltage - Supply 1.65V ~ 2V
Temperature Range - Operating -40°C ~ 85°C (TA)
Mounting SMD (SMT)
Package / Case 8-SOIC (0.209", 5.30mm Width)
Supplier Device Package 8-SOP
Base Product Number MX25U6432
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN 3A991B1A
HTSUS 8542.32.0071
Other Names 1092-MX25U6432FM2I02
Standard Package 92
Win Source Part Number 1081259-MX25U6432FM2I02
Ultra Librarian 3D Model Ultra Librarian MX25U6432FM2I02 CAD Model

Description

The Macronix MX25U6432FM2I02 is a high-performance NOR flash memory IC with a storage capacity of 64Mb (8M x 8).

  • Configuration: SPI - Quad I/O, QPI
  • Clock Frequency: 133 MHz
  • Package: 8-SOIC (0.209", 5.30mm Width)
  • Mounting: Surface mountable
  • Operating Temperature: -40°C to 85°C (TA)
  • Series: MXSMIO™
  • REACH Regulations: unaffected
