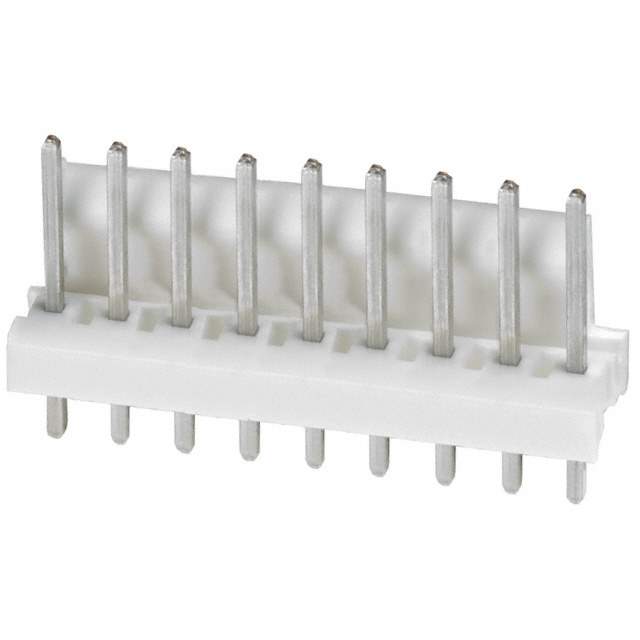

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Manufacturer TE Connectivity AMP Connectors
Packaging Bulk
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Number of Positions 9
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 1 Wall
Mounting Through Hole
Termination Solder
Contact Length - Mating 0.295" (7.49mm)
Contact Length - Post 0.140" (3.56mm)
Overall Contact Length 0.535" (13.59mm)
Insulation Height 0.305" (7.75mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Copper Alloy
Insulation Material Thermoplastic
Temperature Range - Operating -55°C ~ 105°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating (Amps) Varies by Wire Gauge
Voltage Rating 250VAC
Applications General Purpose
Base Product Number 640454
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number 6404549,A19436,-640454-9-SI
Standard Package 1
Win Source Part Number 1332512-640454-9
Ultra Librarian 3D Model Ultra Librarian 640454-9 CAD Model

Description

This TE Connectivity AMP Connectors header is a male pin connector with 9 positions loaded.

  • Contact Material: copper alloy
  • Voltage Rating: 250VAC
  • Mounting: through-hole
  • Pitch: 0.100 inches
  • Contact Finish: tin
  • Insulation Material: thermoplastic
  • UL94 V-0: rated
  • Temperature Range: -55°C to 105°C
  • Applications: general purpose
  • Packaging: bulk
  • Contact Length (mating): 0.295 inches
  • Contact Length (post): 0.140 inches
  • Overall Contact Length: 0.535 inches
  • Insulation Height: 0.305 inches
  • Shrouding: 1 wall
  • Row Spacing: no row spacing for mating
  • ECCN: EAR99
  • RoHS: compliant
