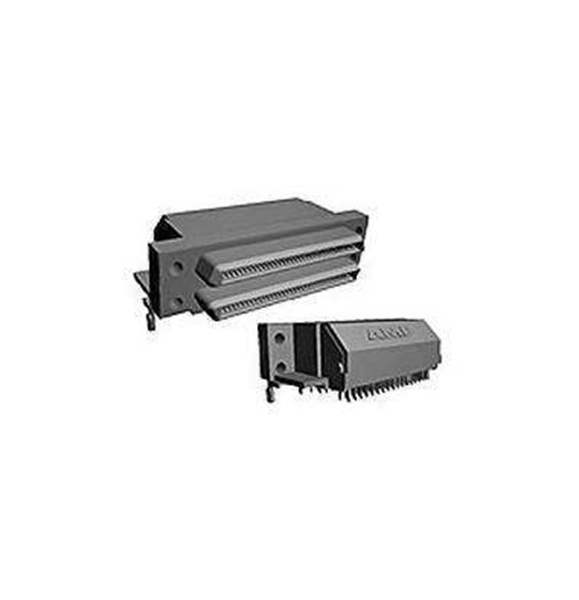

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Win Source Part Number Cross
Manufacturer TE Connectivity AMP Connectors
Category Connectors, Interconnects D-Sub, D-Shaped Connectors Centronics Connectors
Package Tray
Product Status Active
Connector Type Stacked, 2 Receptacles
Number of Positions 68, 68
Mounting Type Panel Mount, Through Hole, Right Angle
Flange Feature Housing/Shell (M2.6)
Features Board Lock
Contact Finish Thickness 30.0µin (0.76µm)
Win Source Part Number WS1209996-6364306-1
Ultra Librarian 3D Model Ultra Librarian 6364306-1 CAD Model

Description

68, 68 Position Stacked, 2 Receptacles Connector Panel Mount, Through Hole, Right Angle Solder
