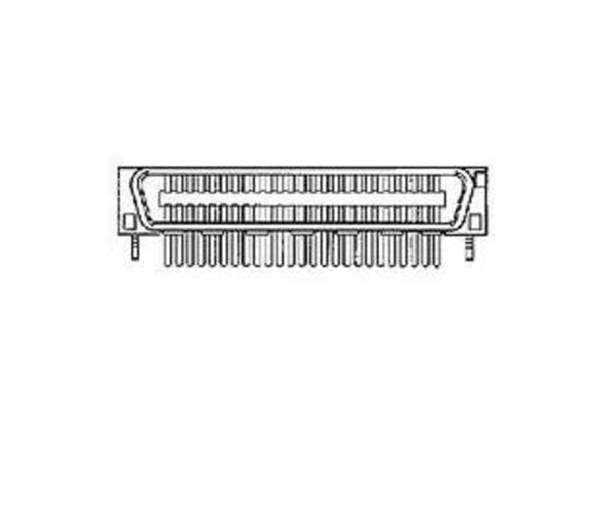

5175472-4 TE Connectivity AMP Connectors
Same model may have multiple batches, images only for reference.

5175472-4

Part No 5175472-4
Manufacturer TE Connectivity
Catalog D - Shaped Connectors - Centronics
Description CONN BTB HD PLUG 36POS R/A SLDR
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number Cross
Manufacturer TE Connectivity AMP Connectors
Category Connectors, Interconnects D-Sub, D-Shaped Connectors Centronics Connectors
Package Bulk
Connector Style Center Strip Contacts
Product Status Active
Connector Type Plug
Mounting Type Through Hole, Right Angle
Termination Solder
Type Board to Board, High Density
Features Board Lock
Win Source Part Number WS1209008-5175472-4
Ultra Librarian 3D Model Ultra Librarian 5175472-4 CAD Model

Description

36 Position Plug Connector Board to Board, High Density Through Hole, Right Angle Solder
