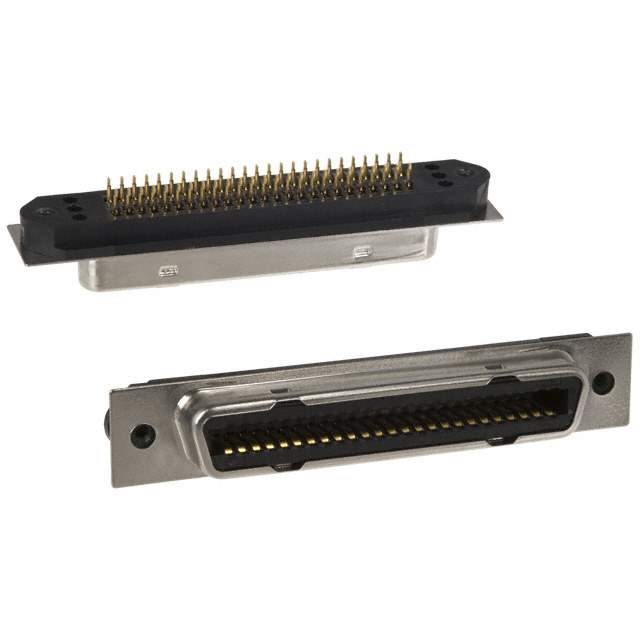

557984-1 Real Image
Same model may have multiple batches, images only for reference.

557984-1

Part No 557984-1
Manufacturer TE Connectivity
Catalog D - Shaped Connectors - Centronics
Description RCPT ASSY,50PO,SHLD,A/PIN,CHAM
Datasheet
557984-1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer TE Connectivity AMP Connectors
Series CHAMP .085
Connector Style Outer Shroud Contacts
Connector Type Receptacle
Number of Positions 50
Number of Rows 2
Mounting Style Through Hole
Termination Press-Fit
Flange Feature Insert, Threaded (4-40)
Features Shielded
Contact Finish Gold
Contact Finish Thickness 30μin (0.76μm)
Win Source Part Number 764037-557984-1
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 557984-1 CAD Model

Description

{"ProductId":702415,"FormattedDescription":"

TE Connectivity AMP Connectors presents the CHAMP .085 series, a shielded receptacle connector with 50 positions and two rows.

  • Mounting: Through Hole
  • Termination: Press-fit
  • Connector Type: Outer Shroud Contacts
  • Features: Flange, Inserted and Threaded with 4-40
  • Contact Finish: Gold
  • Contact Finish Thickness: 30μin (0.76μm)
"}
