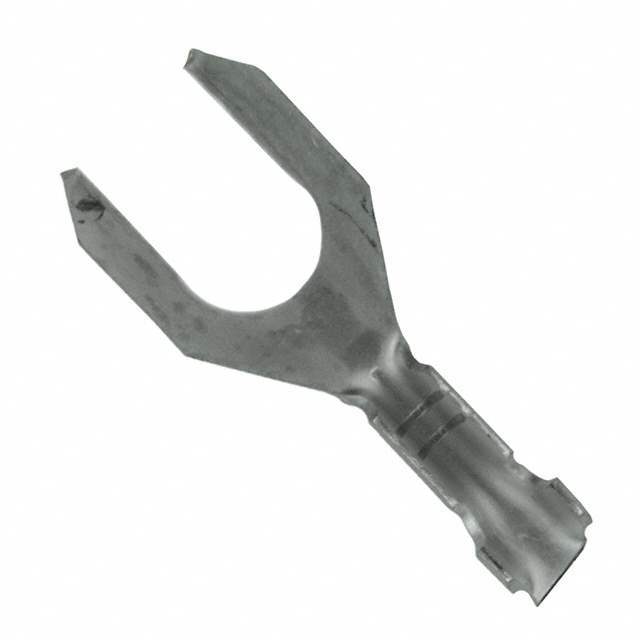

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Manufacturer TE Connectivity AMP Connectors
Category Connectors, Interconnects > Terminals > Spade Connectors
Part Status Active
Terminal Type Standard
Stud/Tab Size 6 Stud
Width - Outer Edges 0.250" (6.35mm)
Length - Overall 0.590" (14.99mm)
Mounting Type Free Hanging (In-Line)
Termination Crimp
Insulation Non-Insulated
Ultra Librarian 3D Model Ultra Librarian 60445-2 CAD Model

Description

Spade Tongue Terminal, 24 – 20 AWG, #6 / M3.5 Stud, 3.51 mm [. 138 in] Stud Diameter, Open Barrel, Straight, Tin Plating, Uninsulated
