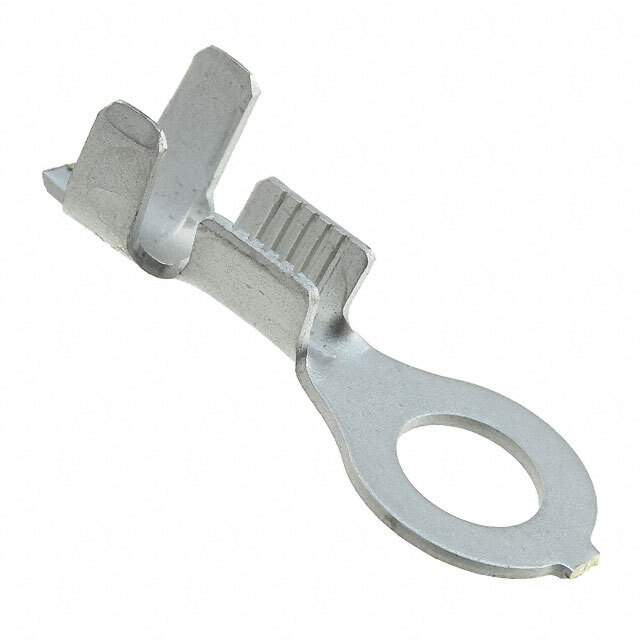

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Terminals - Ring Connectors
Mfr TE Connectivity AMP Connectors
Series Amplivar
Package Tape & Reel (TR),Cut Tape (CT)
Terminal Type Circular
Stud/Tab Size 8 Stud
Thickness 0.020" (0.51mm)
Width - Outer Edges 0.300" (7.62mm)
Length - Overall 0.695" (17.65mm)
Mounting Type Free Hanging (In-Line)
Termination Crimp
Wire Gauge 16-20 AWG
Insulation Non-Insulated
Features Serrated Termination
Contact Material Brass
Contact Finish Tin
Insulation Diameter 0.125" ~ 0.165" (3.18mm ~ 4.19mm)
Base Product Number 60322
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Other Names 2266-60322-2TR,A111332CT,60322-2-ND,A111332TR,-60322-2-SI
Standard Package 5,000
Win Source Part Number 973181-60322-2
Ultra Librarian 3D Model Ultra Librarian 60322-2 CAD Model

Description

This is a connector component with Win Source Part Number 973181-60322-2.

  • Series: Amplivar
  • Termination Style: Crimp
  • Termination Feature: Serrated
  • Contact Finish: Tin
  • Contact Material: Brass
  • Wire Gauge: 16-20 AWG
  • Standard Package: 5,000 pieces
  • Terminal Type: Circular
  • Insulation: Non-Insulated
  • Mounting Type: Free Hanging (In-Line)
  • MSL Level: 1 (Unlimited)
