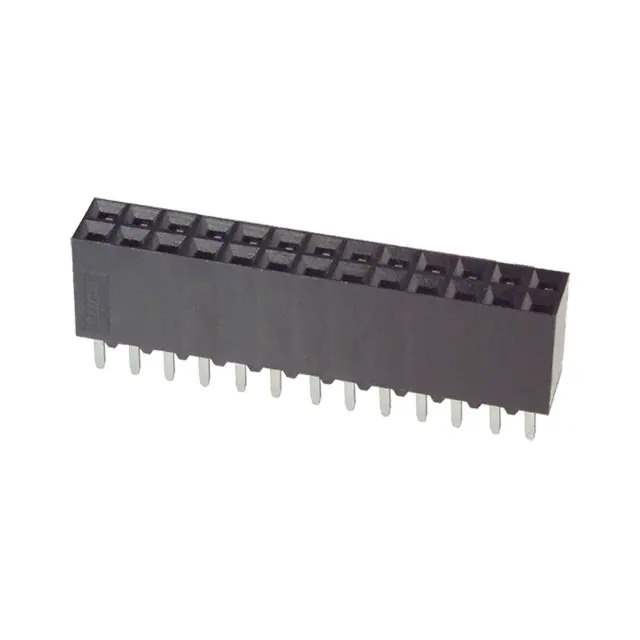

6-534206-3

Name: 6-534206-3
Brand: TE Connectivity
SKU: 856916
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	6-534206-3
Manufacturer	TE Connectivity
Catalog	Rectangular Connectors
Description	CONN RCPT 26POS 0.1 GOLD PCB
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr	TE Connectivity
Series	AMPMODU Mod II
Package	Tube
Product Status	Active
Connector Type	Receptacle
Contact Type	Female Socket
Style	Board to Board or Cable
Number of Positions	26
Number of Positions Loaded	All
Pitch - Mating	0.100" (2.54mm)
Number of Rows	2
Row Spacing - Mating	0.100" (2.54mm)
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	30.0µin (0.76µm)
Insulation Color	Black
Insulation Height	0.320" (8.13mm)
Contact Length - Post	0.115" (2.92mm)
Temperature Range - Operating	-65°C ~ 125°C
Material Flammability Rating	UL94 V-0
Contact Finish - Post	Tin
Current Rating (Amps)	2A
Insulation Material	Polyester, Glass Filled
Contact Shape	Square
Contact Material	Phosphor Bronze
Contact Finish Thickness - Post	150.0µin (3.81µm)
Base Product Number	534206
Standard Package	17 pcs
MSL Level	1 (Unlimited)
REACH Status	Vendor Undefined
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	856916-6-534206-3
Ultra Librarian 3D Model	Ultra Librarian 6-534206-3 CAD Model

Alternative Products

Description

The AMPMODU Mod II series from TE Connectivity offers a reliable solution for connecting electronic components.

Connector Type: Female Socket
Positions: 26
Positions Loaded: Yes
Fastening Type: Push-Pull
Mounting Type: Through-Hole
Pitch: 0.100" (2.54mm)
Contact Material: Phosphor Bronze
Contact Finish (Mating): Gold, 30.0µin (0.76µm)
Contact Finish (Post): Tin, 150.0µin (3.81µm)
Insulation Material: Polyester, Glass-Filled
Temperature Range: -65°C to 125°C
Standard Package: 17 pieces
