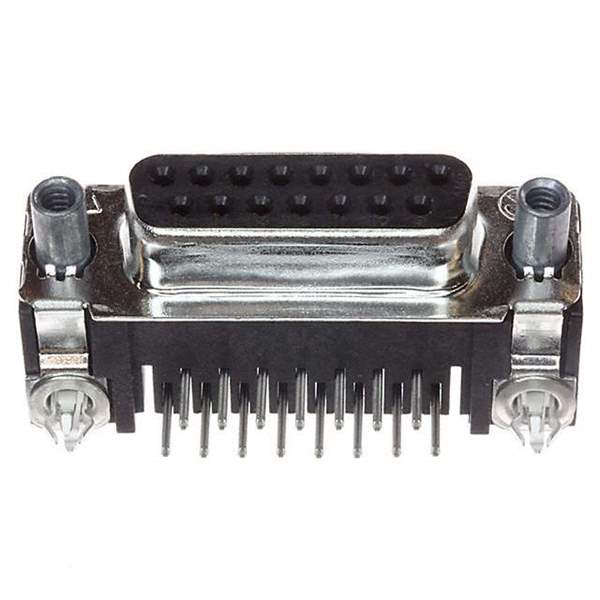

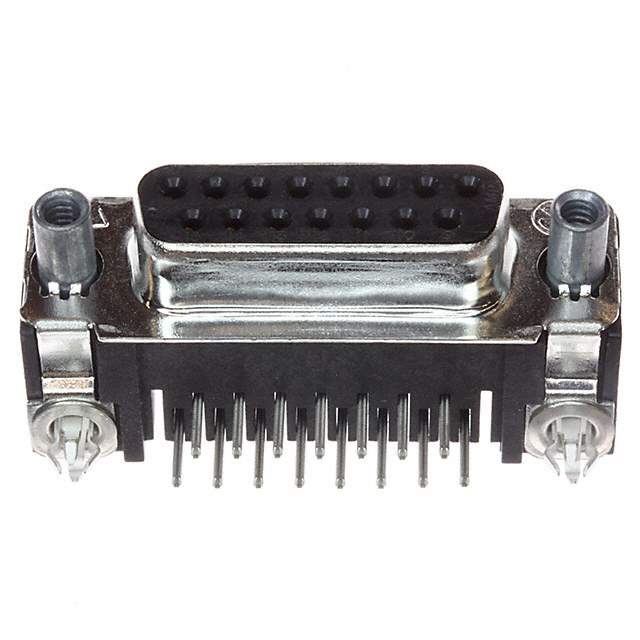

5788799-1 Real Image
Same model may have multiple batches, images only for reference.

5788799-1

Part No 5788799-1
Manufacturer TE Connectivity
Catalog D - SUB, D - SHAPED connectors
Description CONN D-SUB RCPT 15POS R/A SOLDER
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer TE Connectivity AMP Connectors
Packaging Tray
Connector Style D-Sub
Connector Type Receptacle, Female Sockets
Number of Positions 15
Number of Rows 2
Shell Size, Connector Layout 2 (DA, A)
Contact Type Signal
Mounting Style Through Hole, Right Angle
Flange Feature Mating Side, Female Screwlock (4-40)
Termination Solder
Features Board Lock
Shell Material, Finish Steel, Tin Plated
Contact Finish Gold
Contact Finish Thickness 30.0μin (0.76μm)
Material Flammability Rating UL94 V-0
Current Rating (Amps) 6A
Temperature Range - Operating -55°C ~ 105°C
Voltage Rating 125V
Color Black
Dielectric Material Polyamide (PA), Nylon
Contact Material Phosphor Bronze
Backset Spacing 0.318" (8.08mm)
Manufacturer Pack Quantity 104
MSL Level 1 (Unlimited)
Win Source Part Number 759553-5788799-1
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 5788799-1 CAD Model

Description

The TE Connectivity AMP Connectors 759553-5788799-1 is a high-quality female socket connector designed for use in a variety of electronic applications. TE Connectivity AMP Connectors

  • Positions: 15
  • Mounting Style: Through Hole, Right Angle
  • Color: Black
  • Board Lock: Yes
  • Connector Type: Receptacle
  • Rows: 2
  • Signal Contacts: Yes
  • Termination: Solder
  • Contact Finish: Gold (30.0μin (0.76μm))
  • Contact Material: Phosphor Bronze
  • Connector Style: D-Sub
  • Voltage Rating: 125V
  • Flammability Rating: UL94 V-0
  • Shell Material/Finish: Steel, Tin Plated
  • Dielectric Material: Polyamide (PA), Nylon
  • Shell Size/Layout: 2 (DA, A)
  • Temperature Range: -55°C ~ 105°C
  • Backset Spacing: 0.318" (8.08mm)
  • Supply and Demand Status: Balanced
  • Manufacturer Pack Quantity: 104
