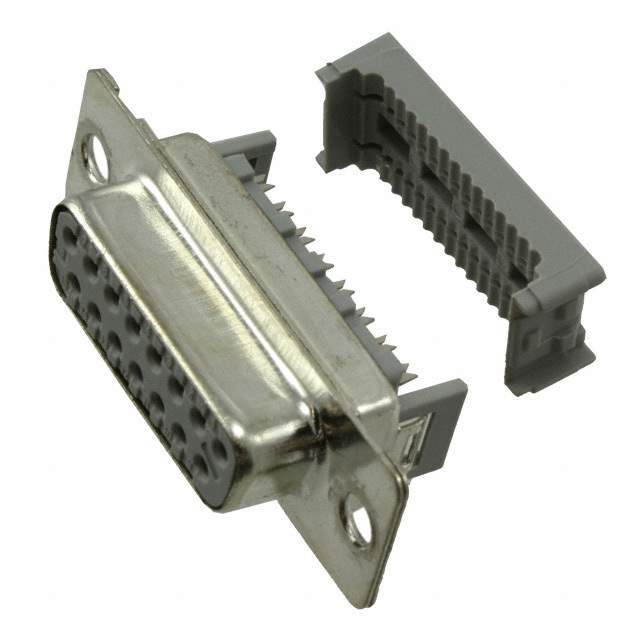

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer 3M
Packaging Bulk
Status Active
Connector Style D-Sub
Connector Type Receptacle, Female Sockets
Number of Positions 15
Number of Rows 2
Shell Size, Connector Layout 2 (DA, A)
Contact Type Signal
Mounting Panel Mount
Flange Feature Housing/Shell (Unthreaded)
Termination IDC, Ribbon Cable
Features Feed Through
Shell Material, Finish Steel, Tin Plated
Contact Finish Gold
Contact Finish Thickness 30μin (0.76μm)
Material Flammability Rating UL94 V-0
Temperature Range - Operating -55°C to 105°C
Current Rating 1A
Color Gray
Housing Material Polybutylene Terephthalate (PBT), Polyester, Glass Filled
Wire Gauge 26-28 AWG
Win Source Part Number 1010335-8315-6009
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 8315-6009 CAD Model

Description

The 3M D-Sub Connector is a female socket receptacle with 15 number of positions and gray color.

  • Gender: Female Socket
  • Number of Positions: 15
  • Color: Gray
  • Feature: Feed Through
  • Contact Type: Signal
  • Contact Finish: Gold
  • Contact Finish Thickness: 30μin (0.76μm)
  • Wire Gauge: 26-28 AWG
  • Current Rating: 1A
  • Material: Polybutylene Terephthalate (PBT), Polyester, Glass Filled
  • Flammability Rating: UL94 V-0
  • Mounting: Panel Mount
  • Flange Feature: Housing/Shell (Unthreaded)
  • Shell Material: Steel, Tin Plated
  • Shell Size: 2 (DA, A)
  • Number of Rows: 2
  • Termination: IDC, Ribbon Cable
  • Packaging: Bulk
  • Status: Active
  • Operating Temperature: -55°C to 105°C
  • Popularity: High
