Same model may have multiple batches, images only for reference.

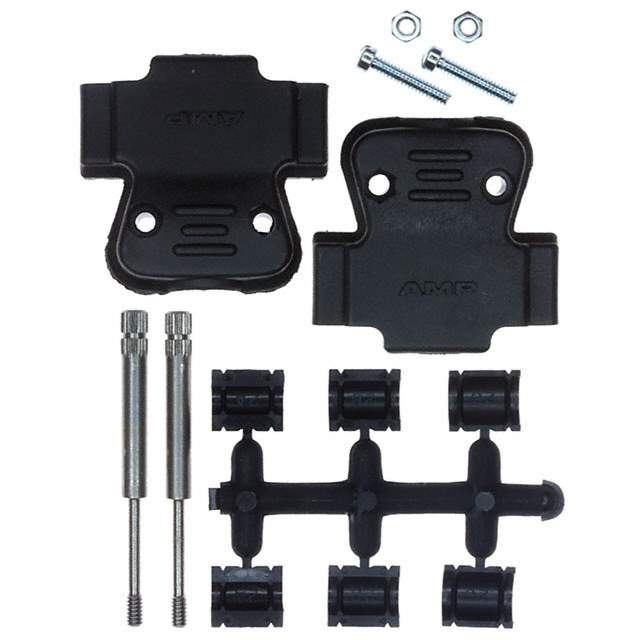

5745122-2 Real Image
Same model may have multiple batches, images only for reference.

5745122-2

Part No 5745122-2
Manufacturer TE Connectivity
Catalog D - Sub Connectors
Description CONN BACKSHELL 15POS 180DEG BLK  /  15 Position Two Piece Backshell Connector Black 180° Unshielded
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>D-Sub, D-Shaped Connectors - Backshells, Hoods
Mfr TE Connectivity AMP Connectors
Series AMPLIMITE
Package Bulk
Accessory Type Two Piece Backshell
Number of Positions 15
Cable Type Round
Cable Exit 180°
Shielding Unshielded
Material Polyamide (PA), Nylon
Hardware Assembly Hardware, Strain Relief
Features Mating Screws 4-40
Color Black
Base Product Number 5745122
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8538.90.8180
Other Names A33675,2266-5745122-2,57451222
Standard Package 1
Win Source Part Number 1039330-5745122-2
Ultra Librarian 3D Model Ultra Librarian 5745122-2 CAD Model

Description

The 1039330-5745122-2 is a two-piece backshell accessory for D-sub, D-shaped connectors from TE Connectivity AMP Connectors.

  • Accessory Type: Backshell, Two Piece
  • Connector Type: D-Sub, D-Shaped
  • Cable Type: Round
  • Cable Exit Angle: 180 Degrees
  • Color: Black
  • Mating Screws: 4-40
  • Material: Polyamide (PA), Nylon
  • Plating: None
  • RoHS Compliant: Yes
