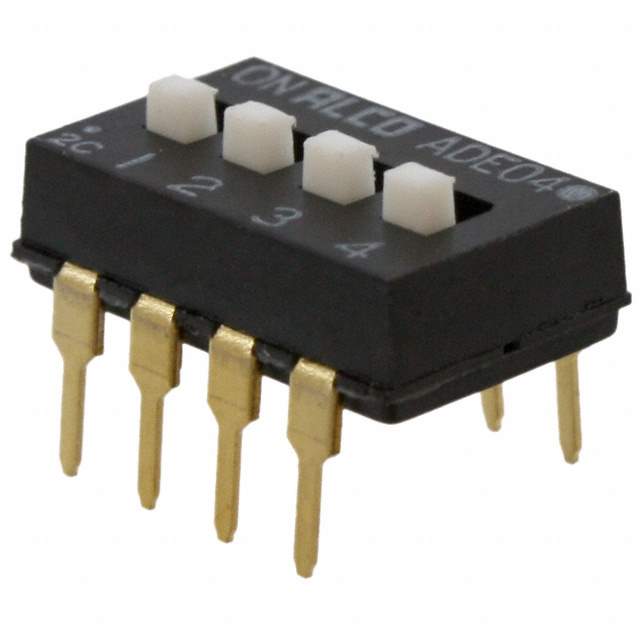

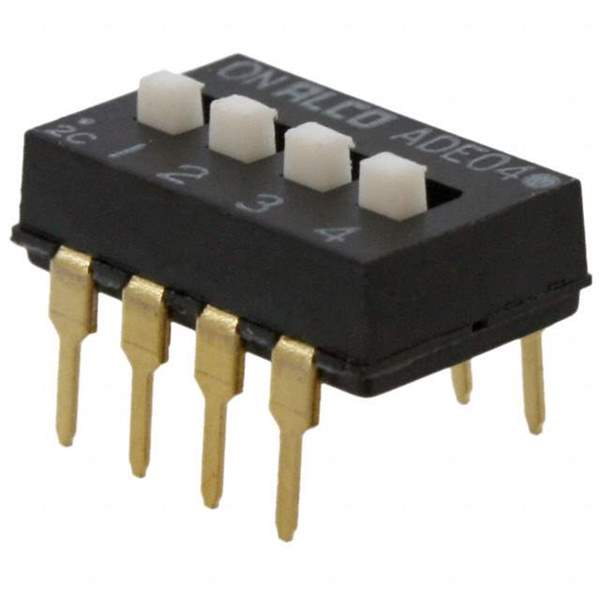

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Switches
Estimated Pruduction Lead Time 30 Weeks
Features Dip Switch SPST Position Through Hole Slide (Standard) Actuator 100mA 24VDC
Manufacturer TE Connectivity
Series ADE
Package Tube
Operating Temperature Range -30°C ~ 85°C
Mounting Through Hole
Family Name 1825360
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9065
Other Part Number 18253603, 450-1781
Quantity per package 35
Popularity High
Supply and Demand Status Balance
Win Source Part Number 905608-1825360-3
Ultra Librarian 3D Model Ultra Librarian 1825360-3 CAD Model

Description

The TE Connectivity 1825360-3 is a high popularity electronic component used in various applications.

  • Manufacturer: TE Connectivity
  • Win Source Part Number: 905608-1825360-3
  • Type: Dip switch
  • Position: SPST
  • Actuator: Through-hole slide
  • Operating Temperature Range: -30°C to 85°C
  • Maximum Current Rating: 100mA @ 24VDC
  • Package: Tube
  • Quantity per Package: 35
  • Category: Switches
