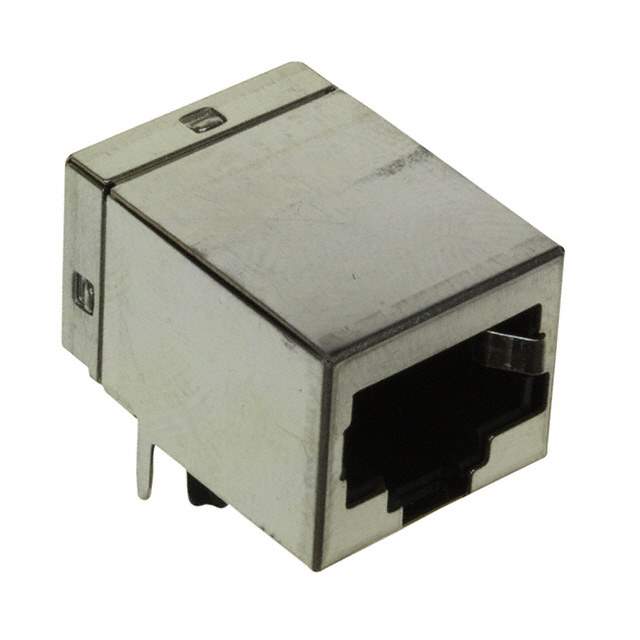

5557786-1 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Modular Connectors - Jacks
Mfr TE Connectivity AMP Connectors
Package Tray
Connector Type Jack
Number of Positions/Contacts 8p8c (RJ45, Ethernet)
Number of Ports 1
Number of Rows 1
Mounting Type Through Hole
Orientation 90° Angle (Right)
Termination Solder
Shielding Shielded
Ratings Cat3
Features Board Guide
LED Color Does Not Contain LED
Tab Direction Down
Contact Material Phosphor Bronze
Contact Finish Gold
Contact Finish Thickness 50.0µin (1.27µm)
Housing Material Polycyclohexylenedimethylene Terephthalate (PCT)
Temperature Range - Operating -40°C ~ 85°C
Base Product Number 5557786
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Other Names -4-16211-5104-SI-ND,55577861,-4-16211-5104-SI,A97707,-5557786-1-SI
Standard Package 90
Win Source Part Number 1180226-5557786-1
Ultra Librarian 3D Model Ultra Librarian 5557786-1 CAD Model

Description

The 8p8c (RJ45, Ethernet) jack connector is from TE Connectivity AMP Connectors and is designed for through-hole mounting.

  • Angle: 90° (right)
  • Orientation: One row and one port
  • Contact Material: Phosphor bronze
  • Contact Finish: Gold
  • Housing Material: Polycyclohexylenedimethylene terephthalate (PCT)
  • Contact Finish Thickness: 50.0µin (1.27µm)
  • Shielded: Yes
  • Rating: Cat3
  • Supply and Demand Status: Vendor undefined
  • Operating Temperature Range: -40°C to 85°C
