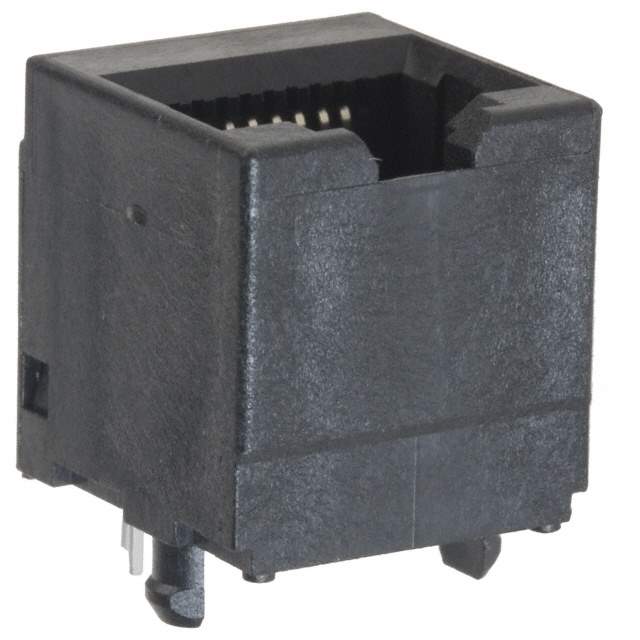

Same model may have multiple batches, images only for reference.

SS-650810-A-NF

Name: SS-650810-A-NF
Brand: Stewart Connector
SKU: 1023849
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	SS-650810-A-NF
Manufacturer	Stewart Connector
Catalog	Modular Connectors
Description	CONN MOD JACK 8P8C VERT UNSHLD / Jack Modular Connector 8p8c (RJ45, Ethernet) Vertical Unshielded
Datasheet	SS-650810-A-NF Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Modular Connectors - Jacks
Mfr	Stewart Connector
Series	65
Package	Tube
Connector Type	Jack
Number of Positions/Contacts	8p8c (RJ45, Ethernet)
Number of Ports	1
Number of Rows	1
Mounting Type	Through Hole
Orientation	Vertical
Termination	Solder
Shielding	Unshielded
Features	Board Lock
LED Color	Does Not Contain LED
Tab Direction	User Selectable
Contact Material	Copper Alloy
Contact Finish	Gold
Contact Finish Thickness	30.0µin (0.76µm)
Housing Material	Thermoplastic
Temperature Range - Operating	-40°C ~ 85°C
Base Product Number	SS-65081
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Other Names	SS650810ANF,380-1026,380-1026-NDR,SS-65100-009
Standard Package	35
Win Source Part Number	1023849-SS-650810-A-NF
Ultra Librarian 3D Model	Ultra Librarian SS-650810-A-NF CAD Model

Alternative Products

Description

The Stewart Connector SS-650810-A-NF is a modular connector designed for jack applications in electronic circuits.

Series: 65
Positions/Contacts: 8p8c (RJ45, Ethernet)
Package: Tube
Housing Material: Thermoplastic
Orientation: Vertical
Contact Finish: Gold
Contact Finish Thickness: 30.0µin (0.76µm)
Number of Ports: 1
Shielded: Unshielded
Board Lock: Yes
Operating Temperature: -40°C to 85°C
ECCN: EAR99
