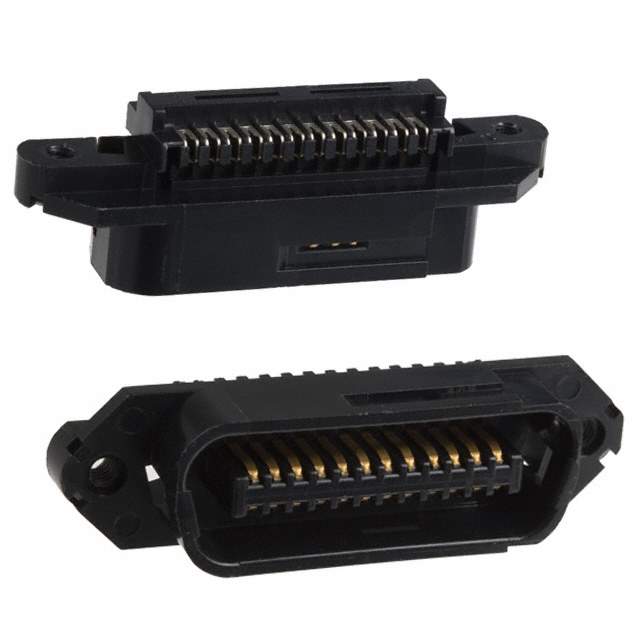

552301-1 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer TE Connectivity AMP Connectors
Series CHAMP .085
Connector Style Center Strip Contacts
Connector Type Plug
Number of Positions 24
Number of Rows 2
Mounting Free Hanging (In-Line)
Termination IDC
Flange Feature Tapped, Threaded (4-40)
Contact Finish Gold
Contact Finish Thickness 30μin (0.76μm)
Win Source Part Number 763940-552301-1
Popularity Medium
Supply and Demand Status Limited
Quantity per package 1k pcs
Family Name 552301
Introduction Date November 07, 2005
ECCN EAR99
Country of Origin Mexico
Halogen Free Compliant
Estimated EOL Date Obsolete
Ultra Librarian 3D Model Ultra Librarian 552301-1 CAD Model

Description

The 763940-552301-1 is a connector manufactured by TE Connectivity AMP Connectors.

  • Series: CHAMP .085
  • Positions: 24
  • Connector Type: Plug
  • Rows: 2
  • Termination: IDC
  • Contact Finish: Gold
  • Contact Finish Thickness: 30μin (0.76μm)
  • Contact Style: Center Strip
  • Mounting: Free Hanging (In-Line)
  • Flange Feature: Tapped, Threaded (4-40)
  • Family Name: 552301
  • Compliance: ECCN: EAR99, HTSUS: 8536.69.8000, ROHS3
  • Popularity: Medium
  • Supply and Demand Status: Limited
  • Packaging: 1k pcs
