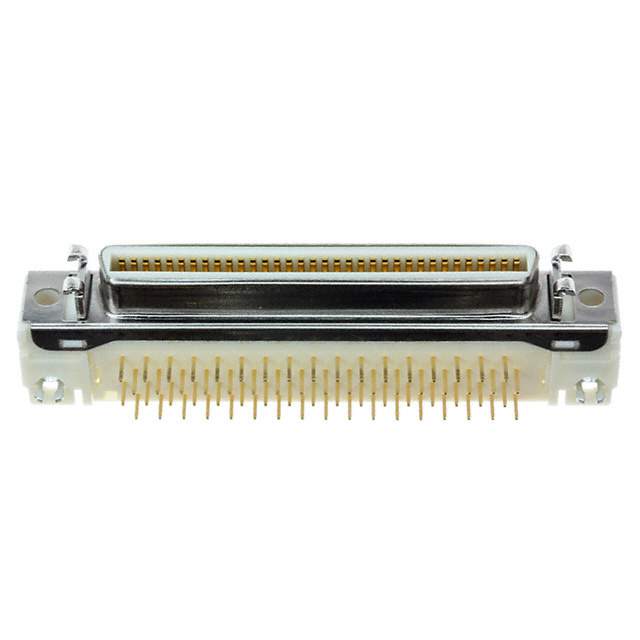

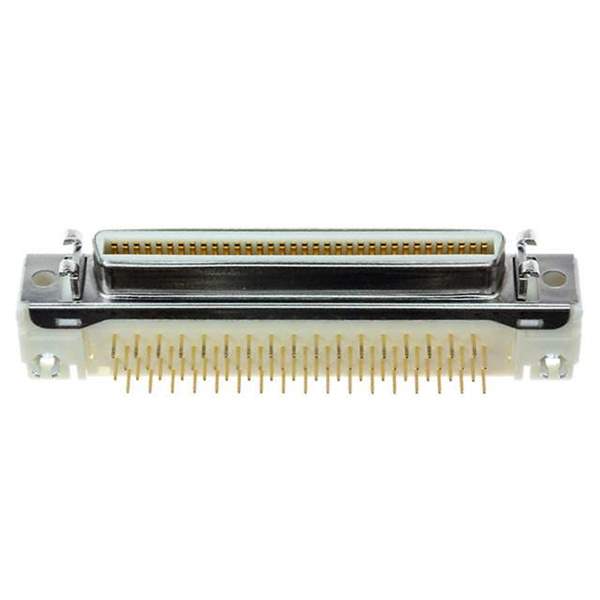

10268-55H3PC Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer 3M
Series 102, Mini D Ribbon (MDR)
Connector Style Outer Shroud Contacts
Connector Type Receptacle
Number of Positions 68
Number of Rows 2
Mounting Panel Mount, Through Hole, Right Angle
Termination Solder
Flange Feature Insert, Threaded (4-40); Latchblocks
Features Board Lock, Shielded
Contact Finish Gold
Contact Finish Thickness 30μin (0.76μm)
Win Source Part Number 1120987-10268-55H3PC
Manufacturer Homepage www.3m.comesd
Popularity Medium
Supply and Demand Status Limited
Family Name 102
Introduction Date November 08, 2004
ECCN EAR99
Estimated EOL Date 2024
Ultra Librarian 3D Model Ultra Librarian 10268-55H3PC CAD Model

Description

The 1120987-10268-55H3PC from 3M is a Mini D Ribbon (MDR) type component with 68 positions.

  • Positions: 68
  • Features: Board lock and shielded
  • Win Source Part Number: 1120987-10268-55H3PC
  • Connector Style: Outer shroud contacts
  • Mounting: Panel through a right angle
