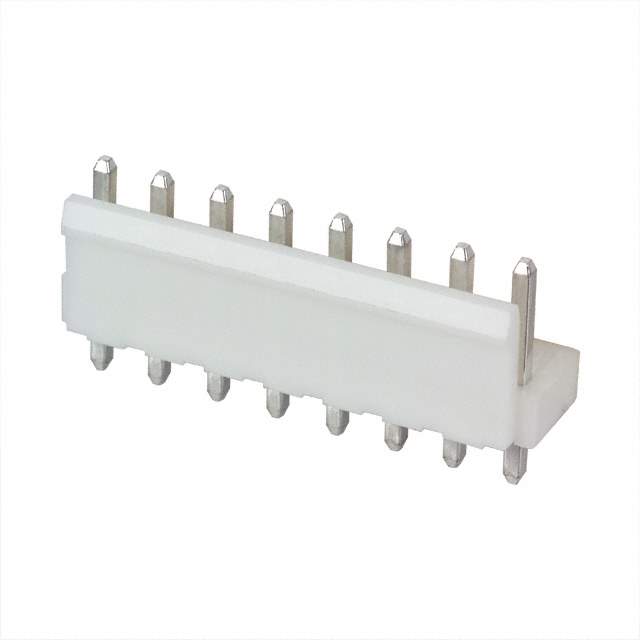

B8P-VH Real Image
Same model may have multiple batches, images only for reference.

B8P-VH

Part No B8P-VH
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Description Disconnectable Crimp style connectors | CONN HEADER VERT 8POS 3.96MM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer JST Sales America Inc.
Packaging Bulk
Status Obsolete
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.156" (3.96mm)
Number of Positions 8
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 1 Wall
Mounting Style Through Hole
Termination Solder
Fastening Type Locking Ramp
Contact Length - Mating 0.303" (7.70mm)
Contact Length - Post 0.146" (3.70mm)
Overall Contact Length 0.575" (14.60mm)
Insulation Height 0.370" (9.40mm)
Contact Shape Square
Contact Finish - Mating Tin-Lead
Contact Finish - Post Tin-Lead
Contact Material Brass
Insulation Material Polyamide (PA66), Nylon 6/6
Temperature Range - Operating -25°C ~ 85°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating (Amps) 10A
Voltage Rating 250V
Mated Stacking Heights 16.5mm
Manufacturer Pack Quantity 200
MSL Level 1 (Unlimited)
Win Source Part Number 722515-B8P-VH
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian B8P-VH CAD Model

Description

This JST Sales America Inc. electronic component is a through-hole header connector with a shrouded 1-wall design.

  • Positions: 8
  • Pitch-Mating: 0.156" (3.96mm)
  • Current Rating: 10A
  • Contact Material: Brass
  • Insulation Material: Polyamide (PA66)/Nylon 6/6
  • Connector Type: Board to Cable/Wire
  • Fastening Type: Locking Ramp
  • Contact Finish-Mating: Tin-Lead
  • Contact Finish-Post: Tin-Lead
  • Insulation Color: Natural
  • Insulation Height: 0.370" (9.40mm)
  • Temperature Range: -25°C to 85°C
  • Manufacturer Pack Quantity: 200
  • MSL Level: 1 (unlimited)
  • Supply and Demand Status: Limited
