Same model may have multiple batches, images only for reference.

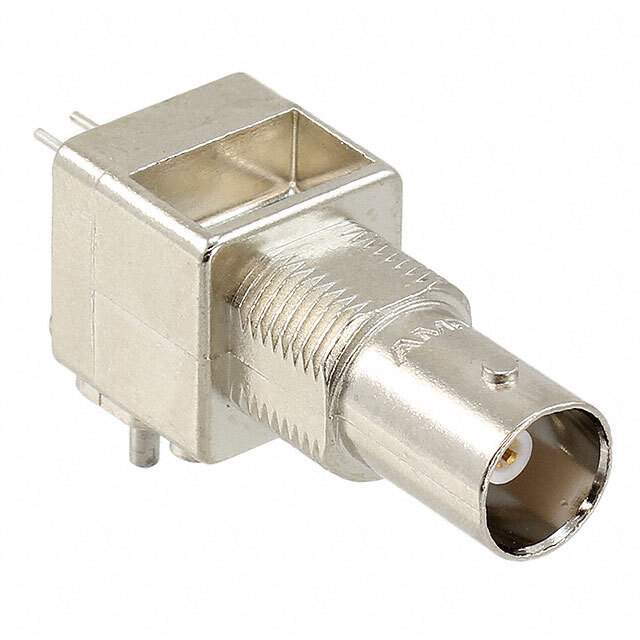

5414409-1 Real Image
Same model may have multiple batches, images only for reference.

5414409-1

Part No 5414409-1
Manufacturer TE Connectivity
Catalog Coaxial Connectors (RF)
Description CONN BNC JACK R/A 75 OHM PCB
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors
Estimated Pruduction Lead Time 14 Weeks
Features BNC Connector Jack, Female Socket 75Ohm Panel Mount, Through Hole, Right Angle Solder
Manufacturer TE Connectivity
Package Tube
Operating Temperature Range -55°C ~ 85°C
Mounting Panel Mount, Through Hole, Right Angle
Family Name 5414409
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4010
Other Part Number -5414409-1-SI, 5414409-1-ND, A115403
Quantity per package 35
Popularity High
Supply and Demand Status Balance
Win Source Part Number 907347-5414409-1
Ultra Librarian 3D Model Ultra Librarian 5414409-1 CAD Model

Description

The TE Connectivity 5414409 series offers a BNC connector jack with a female socket and a 75Ohm panel mount.

  • Socket: Female
  • Impedance: 75Ohm
  • Mounting: Panel Mount, Through-Hole, Right-Angle Solder
  • Operating Temperature: -55°C ~ 85°C
  • Supply and Demand: Balance
  • Lead Time: 14 weeks
  • REACH Status: Affected
