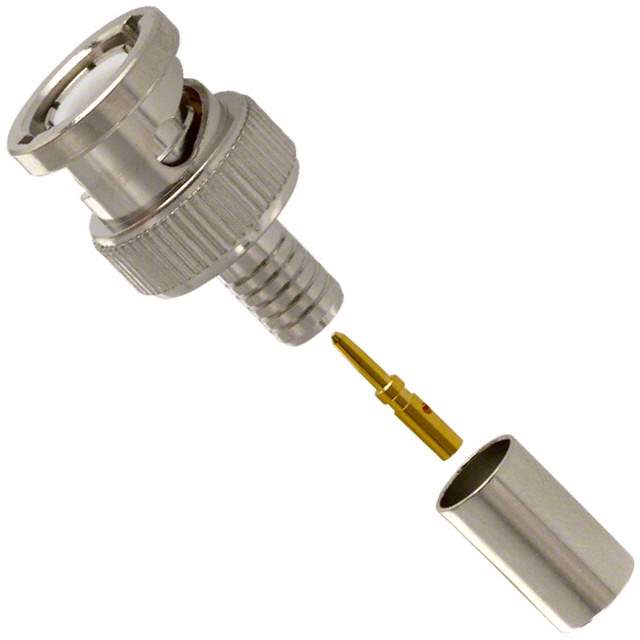

68175-1005 Real Image
Same model may have multiple batches, images only for reference.

68175-1005

Part No 68175-1005
Manufacturer Amphenol
Catalog Coaxial Connectors (RF)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Coaxial Connectors (RF)
Mfr Amphenol RF
Package Bulk
Product Status Not For New Designs
Connector Style BNC
Connector Type Plug, Male Pin
Contact Termination Crimp or Solder
Shield Termination Crimp
Impedance 50Ohm
Mounting Type Free Hanging (In-Line)
Cable Group RG-59, Belden 1426A, 1505A, 8281, 9100, 9278
Fastening Type Bayonet Lock
Frequency - Max 2 GHz
Number of Ports 1
Housing Color Silver
Center Contact Material Brass
Includes 3 pcs - 1 Connector, 1 Contact, 1 Ferrule
Body Material Brass
Body Finish Nickel
Center Contact Plating Gold
Dielectric Material Polytetrafluoroethylene (PTFE)
Temperature Range - Operating -65°C ~ 165°C
Voltage Rating 500 V
Mating Cycles 500
Insertion Loss 0.2dB
Base Product Number 68175
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4010
Win Source Part Number 1316253-68175-1005
Ultra Librarian 3D Model Ultra Librarian 68175-1005 CAD Model

Description

The AMPHENOL 1316253-68175-1005 is a male pin plug coaxial connector that falls under the Coaxial Connectors (RF) category.

  • Fastening Type: Bayonet Lock
  • Package: Bulk
  • Contact Termination: Crimp or Solder
  • Connector Style: BNC
  • Voltage Rating: 500 V
  • Impedance: 50Ohm
  • Body Material: Brass
  • Body Finish: Nickel
  • Center Contact Material: Brass
  • Center Contact Plating: Gold
  • Dielectric Material: Polytetrafluoroethylene (PTFE)
  • Base Product Number: 68175
  • Manufacturer: Amphenol RF
This connector is not for new designs.
