Same model may have multiple batches, images only for reference.

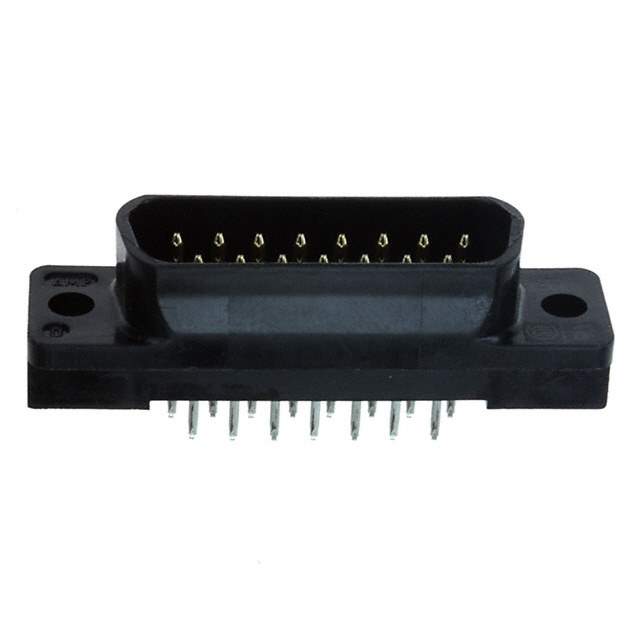

5208007-2 Real Image
Same model may have multiple batches, images only for reference.

5208007-2

Part No 5208007-2
Manufacturer TE Connectivity
Catalog D - SUB, D - SHAPED connectors
Description CONN D-SUB PLUG 15POS VERT SLDR
Datasheet
5208007-2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer TE Connectivity AMP Connectors
Series AMPLIMITE HD-20
Packaging Tube
Connector Style D-Sub
Connector Type Plug, Male Pins
Number of Positions 15
Number of Rows 2
Shell Size, Connector Layout 2 (DA, A)
Contact Type Signal
Mounting Style Through Hole
Flange Feature Housing/Shell (Unthreaded)
Termination Solder
Contact Finish Gold
Contact Finish Thickness Flash
Material Flammability Rating UL94 V-0
Operating Temperature Range -55°C ~ 105°C
Voltage Rating 125V
Current Rating 6A
Color Black
Housing Material Polyester
Contact Material Brass
Win Source Part Number 761730-5208007-2
Popularity Medium
Supply and Demand Status Limited
Family Name 5208007
Introduction Date January 01, 2000
ECCN EAR99
Country of Origin Mexico
Halogen Free Not Compliant
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian 5208007-2 CAD Model

Description

The TE Connectivity AMP Connectors 761730-5208007-2 is a male plug connector manufactured by TE Connectivity AMP Connectors.

  • Positions: 15
  • Mounting: Through-hole
  • Contact Type: Signal
  • Current: 6A
  • Voltage: 125V
  • Qualification: AEC-Q200
  • Connector Style: D-sub
  • Housing Material: Polyester
  • Packaging: Tube
  • Operating Temperature: -55°C to 105°C
  • Alternative Names: M24308/24-14F, DA15-PT-1-BL-JS, 627-015-220-016
