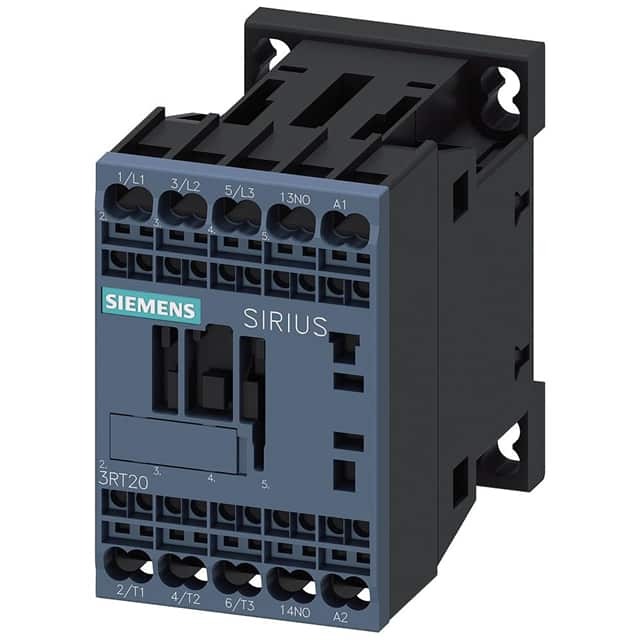

3RT20152AP01 Siemens
Same model may have multiple batches, images only for reference.

3RT20152AP01

Part No 3RT20152AP01
Manufacturer Siemens
Catalog Contactors (Electromechanical)
Description CONTACTOR S00 7A 230VAC 1NO SPRG
Datasheet
3RT20152AP01 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Contactors (Electromechanical)
Mfr Siemens
Series SIRIUS
Package Box
Product Status Active
Mounting Type Chassis Mount, DIN Rail
Coil Voltage 230VAC
Contact Form 3PST-NO (3 Form A)
Contact Rating (Current) 7 A
Switching Voltage 690VAC - Max
Features Auxiliary Contacts
Termination Style Screw Terminal
Temperature Range - Operating -25°C ~ 60°C
Must Operate Voltage 195.5 VAC
Operate Time 35 ms
Release Time 13 ms
Coil Power 24.3VA
Base Product Number 3RT2015
Standard Package 1 pcs
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.49.0065
Win Source Part Number 1083427-3RT20152AP01
Ultra Librarian 3D Model Ultra Librarian 3RT20152AP01 CAD Model

Description

The Siemens 1083427-3RT20152AP01 is a relay contactor from the SIRIUS series.

  • Series: SIRIUS
  • Contact Form: 3PST-NO (3 Form A)
  • Auxiliary Contacts: Yes
  • Contact Rating: 7A
  • Switching Voltage: 690VAC
  • Coil Voltage: 230VAC
  • Coil Power: 24.3VA
  • Operating Temperature: -25°C to 60°C
  • Mounting Type: Chassis or DIN Rail
  • Product Status: Active
