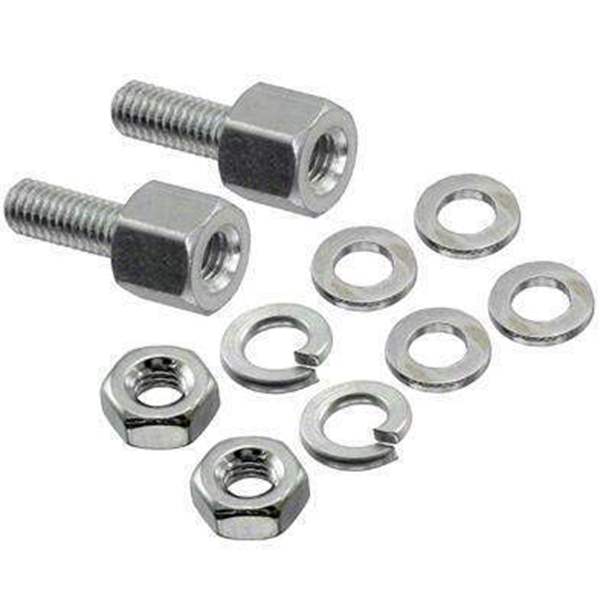

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Win Source Part Number Cross
Manufacturer TE Connectivity AMP Connectors
Category Connectors, Interconnects D-Sub, D-Shaped Connectors D-Sub, D-Shaped Connector Jackscrews
Package Bag
Product Status Active
Accessory Type Jackscrew Socket
For Use With/Related Products AMPLIMITE Series HDF, HDP
Features Hardware Included
Length - Below Head 0.312" (7.92mm)
Thread Size M3.5 Socket, M3.5 Screw
Win Source Part Number WS1209138-5207872-3
Ultra Librarian 3D Model Ultra Librarian 5207872-3 CAD Model

Description

Jackscrew Socket For AMPLIMITE Series HDF, HDP
