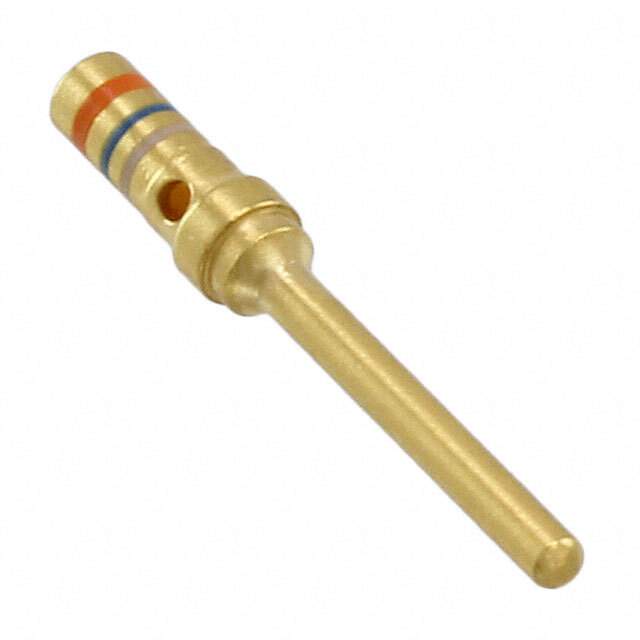

205089-1 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Contacts - Multi Purpose
Mfr TE Connectivity Aerospace, Defense and Marine
Series AMPLIMITE HD-20
Package Bulk
Type Signal, Machined
Pin or Socket Pin
Contact Termination Crimp
Wire Gauge 20-24 AWG
Contact Material Copper Alloy
Contact Finish Gold
Base Product Number 205089
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.90.4000
Other Names A2160,2050891,2266-205089-1,-205089-1-LSI
Standard Package 1,000
Win Source Part Number 1135066-205089-1
Ultra Librarian 3D Model Ultra Librarian 205089-1 CAD Model

Description

The 1135066-205089-1 is a signal, machined type contact from the AMPLIMITE HD-20 series of connectors.

  • Contact Type: Gold-plated pin
  • Wire Gauge: 20-24 AWG
  • Standard Package: 1,000
  • ROHS3 Compliant: Yes
  • ECCN: EAR99
  • MSL Level: 1 (unlimited)
