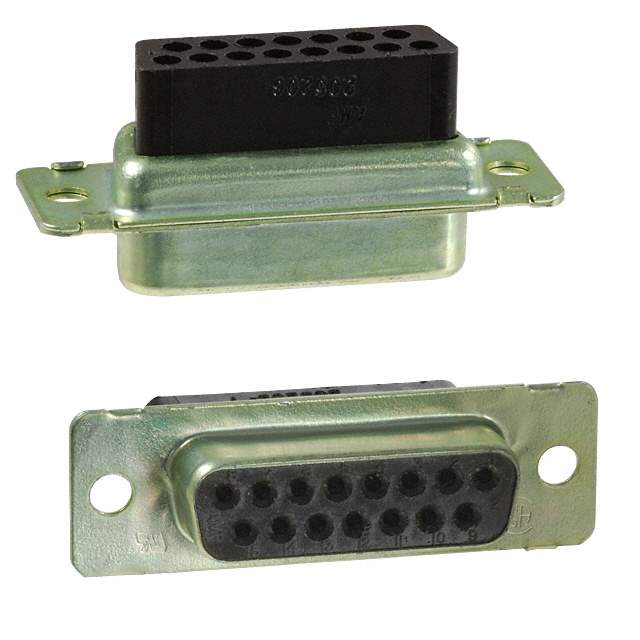

205205-7 Real Image
Same model may have multiple batches, images only for reference.

205205-7

Part No 205205-7
Manufacturer TE Connectivity
Catalog D - Sub Connectors
Description CONN D-SUB HOUSING RCPT 15POS / Receptacle for Female Contacts Housing D-Sub Connector 15 Position
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>D-Sub, D-Shaped Connectors - Housings
Mfr TE Connectivity AMP Connectors
Series AMPLIMITE HDP-20
Package Bulk
Connector Style D-Sub
Connector Type Receptacle for Female Contacts
Number of Positions 15
Number of Rows 2
Shell Size, Connector Layout 2 (DA, A)
Contact Type Signal
Mounting Type Free Hanging (In-Line)
Flange Feature Housing/Shell (Unthreaded)
Shell Material, Finish Steel, Yellow Trivalent Chromium Chromate Zinc Plated
Shell Finish Thickness 200µin (5.08µm)
Dielectric Material Polyamide (PA), Nylon, Glass Filled
Color Black
Note Contacts Not Included
Base Product Number 205205
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8538.90.8180
Other Names -205205-7-SI,2052057,A34106,2266-205205-7
Standard Package 400
Win Source Part Number 1232194-205205-7
Ultra Librarian 3D Model Ultra Librarian 205205-7 CAD Model

Description

The AMPLIMITE HDP-20 series from TE Connectivity AMP Connectors offers a 15-position D-sub connector with a receptacle for female contacts.

  • Position: 15
  • Connector Type: D-Sub
  • Contact Gender: Receptacle (Female)
  • Color: Black
  • Dielectric Material: Polyamide (PA), Nylon, Glass-Filled
  • Shell Material: Steel
  • Shell Finish: Yellow Trivalent Chromium Chromate Zinc Plated
  • Shell Size and Layout: 2 (DA, A)
  • Mounting Type: Free-Hanging (In-Line)
  • Contact Type: Signal
  • Temperature Range: -55°C to 125°C
  • Package: Bulk
  • Standard Package: 400
