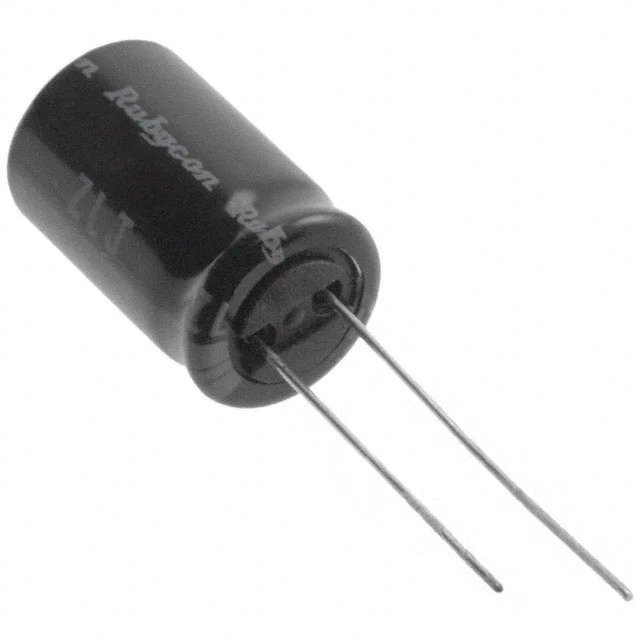

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Rubycon
Series RX30
Package Bulk
Product Status Active
Capacitance 1000 µF
Tolerance ±20%
Voltage - Rated 35 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 4000 Hrs @ 130°C
Temperature Range - Operating -40°C ~ 130°C
Polarization Polar
Ratings AEC-Q200
Applications Automotive
Ripple Current @ Low Frequency 1.073 A @ 120 Hz
Impedance 40 mOhms
Lead Spacing 0.197" (5.00mm)
Size / Dimension 0.492" Dia (12.50mm)
Height - Seated (Max) 1.063" (27.00mm)
Surface Mount Land Size -
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1357829-35RX301000M12.5X25
Ultra Librarian 3D Model Ultra Librarian 35RX301000M12.5X25 CAD Model

Description

The Rubycon RX30 series aluminum electrolytic capacitor is a reliable component designed for automotive applications, and manufactured by Rubycon.

  • Series: RX30
  • Application: Automotive
  • Capacitance: 1000 µF
  • Voltage Rating: 35 V
  • Design: Radial, Can
  • Mounting Type: Through-Hole
  • Tolerance: ±20%
  • Ripple Current: 1.073 A @ low frequency (120 Hz)
  • Lead Spacing: 0.197" (5.00mm)
  • Size/Dimension: 0.492" Dia (12.50mm)
  • Lifetime: 4000 hours @ 130°C
  • Standard: AEC-Q200
