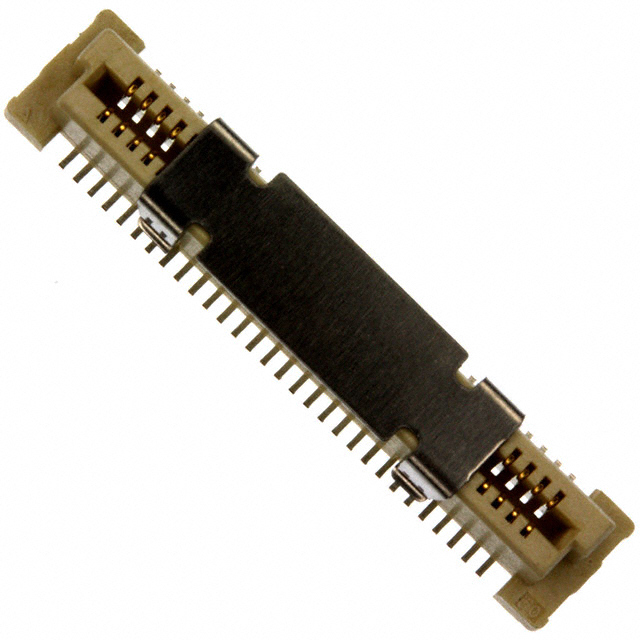

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer TE Connectivity AMP Connectors
Series Free Height (FH)
Packaging Reel package
Connector Type Receptacle, Outer Shroud Contacts
Number of Positions 60
Pitch 0.031" (0.80mm)
Number of Rows 2
Mounting SMD
Features Board Guide
Contact Finish Gold
Contact Finish Thickness 8μin (0.20μm)
Mated Stacking Heights 5mm, 6mm, 7mm, 8mm
Win Source Part Number 763924-5177985-2
Popularity Medium
Supply and Demand Status Balance
Family Name 5177985
Introduction Date August 24, 2004
ECCN EAR99
Country of Origin China
Halogen Free Compliant
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian 5177985-2 CAD Model

Description

The TE Connectivity AMP Connectors 763924-5177985-2 is a connector designed for various applications.

  • Positions: 60
  • Pitch: 0.031" (0.80mm)
  • Connector Type: Receptacle with Outer Shroud Contacts
  • Rows: Two
  • Contact Finish: Gold
  • Contact Finish Thickness: 8μin (0.20μm)
  • Mated Stacking Heights: 5mm, 6mm, 7mm, 8mm
  • Mounting: SMD
  • Category: Connectors, Interconnects
  • Estimated EOL Date: 2026
  • Compliance: Halogen-Free
