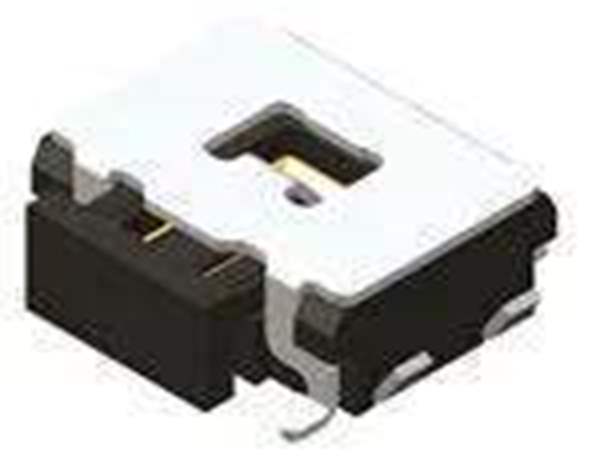

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Win Source Part Number WS1196613-PTF-V-T/R
Manufacturer Diptronics
Category Tactile Switches
Mounting Style SMD/SMT
Operating Force 260 gf
Current Rating 50 mA
Voltage Rating DC 12 VDC
Packaging Cut Tape
Width 1.67 mm
Height 4.7 mm
Ultra Librarian 3D Model Ultra Librarian PTF-V-T/R CAD Model

Description

The tactile switch from Diptronics is a reliable and compact switch designed for surface mount applications.

  • Packaging: Cut tape
  • Height: 4.7mm
  • Operating Force: 260gf
  • Voltage Rating: 12VDC
  • Current Rating: 50mA
  • Width: 1.67mm
