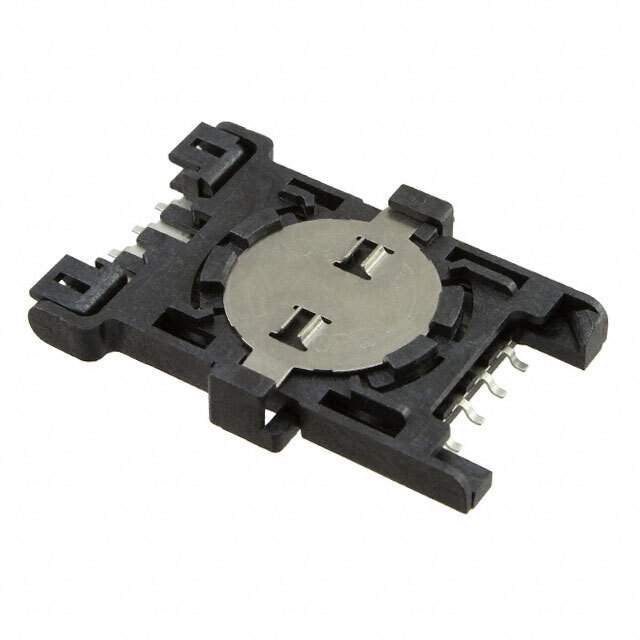

5145299-2 Real Image
Same model may have multiple batches, images only for reference.

5145299-2

Part No 5145299-2
Manufacturer TE Connectivity
Catalog Memory Connectors - PC Card Sockets
Description CONN SIM/SAM CARD PUSH-PUSH R/A / 8 (6 + 2) Position Card Connector SIM, SAM Card Surface Mount, Right Angle Gold
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Memory Connectors>PC Card Sockets
Manufacturer TE Connectivity AMP Connectors
Packaging Reel - TR
Card Type SIM, SAM Card
Number of Positions 8 (6 + 2)
Connector Type Connector and Ejector
Insertion, Removal Method Hinged Lid
Mounting Surface Mount, Right Angle
Features Board Guide, Rotation Locking Disc, Switch
Height Above Board 0.160" (4.06mm)
Mounting Feature Normal, Standard - Top
Contact Finish Gold
Base Product Number 5145299
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number A105159CT,2266-5145299-2,51452992,-5145299-2-SI,5145299-2-ND,A105159TR,A105159DKR
Standard Package 500
Win Source Part Number 1334074-5145299-2
Ultra Librarian 3D Model Ultra Librarian 5145299-2 CAD Model

Description

The 5145299-2 is a PC card socket that belongs to the category of memory connectors.

  • Manufacturer: TE Connectivity AMP Connectors
  • Packaging: Reel - TR
  • Package: 500
  • Positions: 8 (6 + 2)
  • Features: Board guide, rotation locking disc, and switch
  • Connector Type: Connector and ejector
  • Contact Finish: Gold
  • Height Above Board: 0.160" (4.06mm)
  • Mounting: Surface mount, right angle
  • Card Types: SIM and SAM
  • Insertion/Removal Method: Hinged lid
  • Mounting Feature: Normal, standard - top
  • RoHS Compliant: Yes
