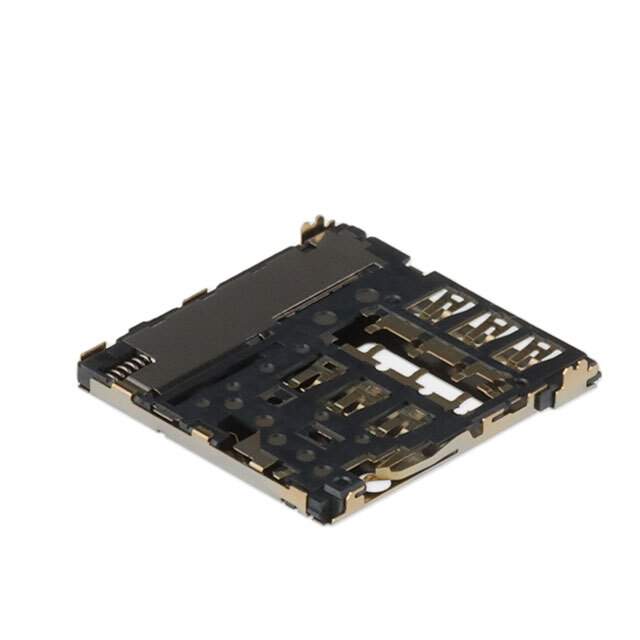

2822541-1 Real Image
Same model may have multiple batches, images only for reference.

2822541-1

Part No 2822541-1
Manufacturer TE Connectivity
Catalog Memory Connectors - PC Card Sockets
Description PUSH-PUSH MICRO SIM CONNECTOR / 7 (6 + 1) Position Card Connector Micro SIM Surface Mount, Right Angle Gold
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Memory Connectors>PC Card Sockets
Manufacturer TE Connectivity AMP Connectors
Packaging Reel - TR
Card Type Micro SIM
Number of Positions 7 (6 + 1)
Connector Type Connector and Ejector
Insertion, Removal Method Push In, Push Out
Mounting Surface Mount, Right Angle
Features Switch
Height Above Board 0.050" (1.28mm)
Mounting Feature Normal, Standard - Top
Contact Finish Gold
Base Product Number 2822541
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number A141365TR,A141365DKR,-2822541-1-CSI,A141365CT,-2822541-1-SI
Standard Package 1,450
Win Source Part Number 1333993-2822541-1
Ultra Librarian 3D Model Ultra Librarian 2822541-1 CAD Model

Description

The 2822541-1 is a micro SIM PC card socket with seven positions, including a switch. It is designed for surface mount, right-angle mounting and has a height above the board of 0.050 inches.

  • Manufacturer: TE Connectivity AMP Connectors
  • Contact Finish: Gold
  • Insertion and Removal Method: Push-in and push-out
  • ROHS Compliant: Yes
  • Standard Package: 1,450
