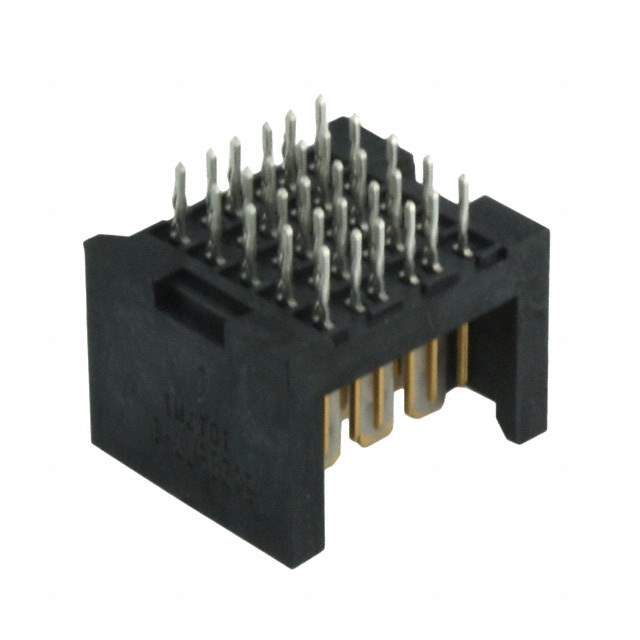

5120677-1 Real Image
Same model may have multiple batches, images only for reference.

5120677-1

Part No 5120677-1
Manufacturer TE Connectivity
Catalog Backplane Connectors
Description CONN HEADER DUAL BEAM 30POS PCB / 30 Connector Header, Male Pins and Blades Through Hole Dual Beam, Right Side
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Backplane Connectors - Specialized
Mfr TE Connectivity AMP Connectors
Series Z-PACK HS3
Package Tube
Connector Usage Backplane
Connector Type Header, Male Pins and Blades
Connector Style Dual Beam, Right Side
Number of Positions 30
Number of Positions Loaded All
Pitch 0.098" (2.50mm)
Number of Rows 6
Number of Columns 5
Mounting Type Through Hole
Termination Press-Fit
Contact Finish Gold
Contact Finish Thickness 30.0µin (0.76µm)
Current Rating (Amps) 1.15A
Material Flammability Rating UL94 V-0
Temperature Range - Operating -65°C ~ 105°C
Voltage Rating 250V
Base Product Number 5120677
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Names -5120677-1-SI,51206771,A130954,2266-5120677-1,5120677-1-ND
Standard Package 34
Win Source Part Number 1039040-5120677-1
Ultra Librarian 3D Model Ultra Librarian 5120677-1 CAD Model

Description

The 1039040-5120677-1 is a backplane connector designed for use in specialized applications.

  • Series: Z-PACK HS3
  • Positions: 30
  • Pitch: 0.098" (2.50mm)
  • Voltage: 250V
  • Current Rating: 1.15A
  • Operating Temperature: -65°C to 105°C
  • Manufacturer: TE Connectivity AMP Connectors
  • Package: Tube
  • Type: Dual-beam, right-side header
  • Pins/Blades: Male
  • RoHS Compliant: Yes
  • Material Flammability Rating: UL94 V-0
