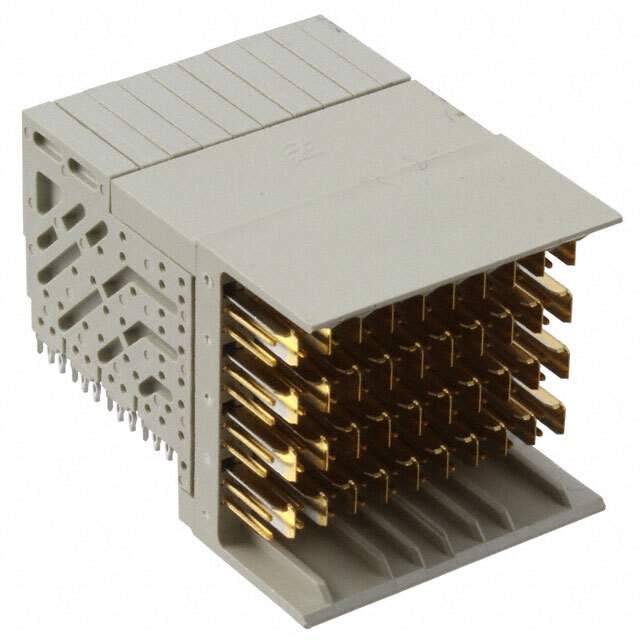

1645601-1 Real Image
Same model may have multiple batches, images only for reference.

1645601-1

Part No 1645601-1
Manufacturer TE Connectivity
Catalog Backplane Connectors
Description CONN HDR HIGH SPEED 120POS PCB / 120 Connector Header, Male Pins and Blades Through Hole, Right Angle High Speed
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Backplane Connectors - Specialized
Mfr TE Connectivity AMP Connectors
Series Z-PACK HM-Zd
Package Tube
Connector Usage Coplanar, Daughtercard
Connector Type Header, Male Pins and Blades
Connector Style High Speed
Number of Positions 120
Number of Positions Loaded All
Pitch 0.098" (2.50mm)
Number of Rows 8
Number of Columns 10
Mounting Type Through Hole, Right Angle
Termination Press-Fit
Contact Layout, Typical 80 Single Signal, 40 Ground
Features Shielded
Contact Finish Gold
Contact Finish Thickness 30.0µin (0.76µm)
Base Product Number 1645601
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Other Names A107826,2266-1645601-1,-1645601-1-SI
Standard Package 20
Win Source Part Number 1021105-1645601-1
Ultra Librarian 3D Model Ultra Librarian 1645601-1 CAD Model

Description

The TE Connectivity AMP Connectors Z-PACK HM-Zd series is a high-speed connector type that has a shielded feature.

  • Connector Type: Header Male Pins and Blades
  • Termination: Press-Fit
  • Number of Positions: 120
  • Pitch: 0.098 inches (2.50mm)
  • Package: Tube
  • Number of Rows: 8
  • Number of Columns: 10
  • Contact Layout: 80 Single Signal and 40 Ground
  • Standard Package: 20
  • Connector Usage: Coplanar and Daughtercard
