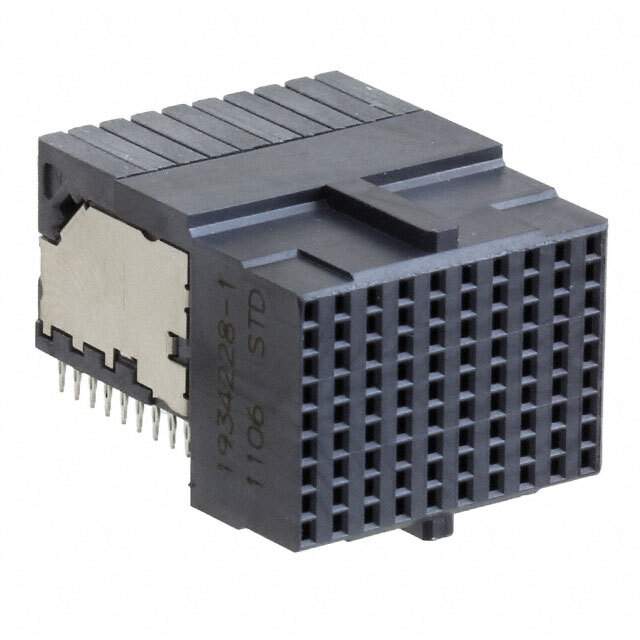

Part No 1934228-1
Manufacturer TE Connectivity
Catalog Backplane Connectors
Description CONN RCPT HD 90POS EDGE MNT / 90 Connector Receptacle, Female Sockets Board Edge, Through Hole, Right Angle Black High Speed
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Backplane Connectors - Specialized
Mfr TE Connectivity AMP Connectors
Series Z-PACK TinMan
Package Bag
Connector Usage Coplanar, Daughtercard
Connector Type Receptacle, Female Sockets
Connector Style High Speed
Number of Positions 90
Number of Positions Loaded All
Pitch 0.075" (1.90mm)
Number of Rows 9
Number of Columns 10
Mounting Type Board Edge, Through Hole, Right Angle
Termination Press-Fit
Features Shielded
Contact Finish Gold
Contact Finish Thickness 30.0µin (0.76µm)
Color Black
Current Rating (Amps) 0.5A
Material Flammability Rating UL94 V-0
Temperature Range - Operating -65°C ~ 90°C
Voltage Rating 250V
Base Product Number 1934228
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Other Names 2266-1934228-1,-1934228-1-SI,A107519
Standard Package 26
Win Source Part Number 1015664-1934228-1
Ultra Librarian 3D Model Ultra Librarian 1934228-1 CAD Model

Description

The TE Connectivity Z-PACK TinMan 1015664-1934228-1 backplane connector is a high-quality connector that is perfect for use in various electronic applications.

  • Contact Type: Receptacle, female sockets
  • Mounting: Through hole
  • Pitch: 0.075 inches or 1.90mm
  • Current Rating: 0.5A
  • Contact Finish: Gold
  • Contact Finish Thickness: 30.0μin or 0.76μm
  • Temperature Range: -65°C to 90°C
  • Applications: Coplanar and daughtercard
